Schluter®-RENO-U

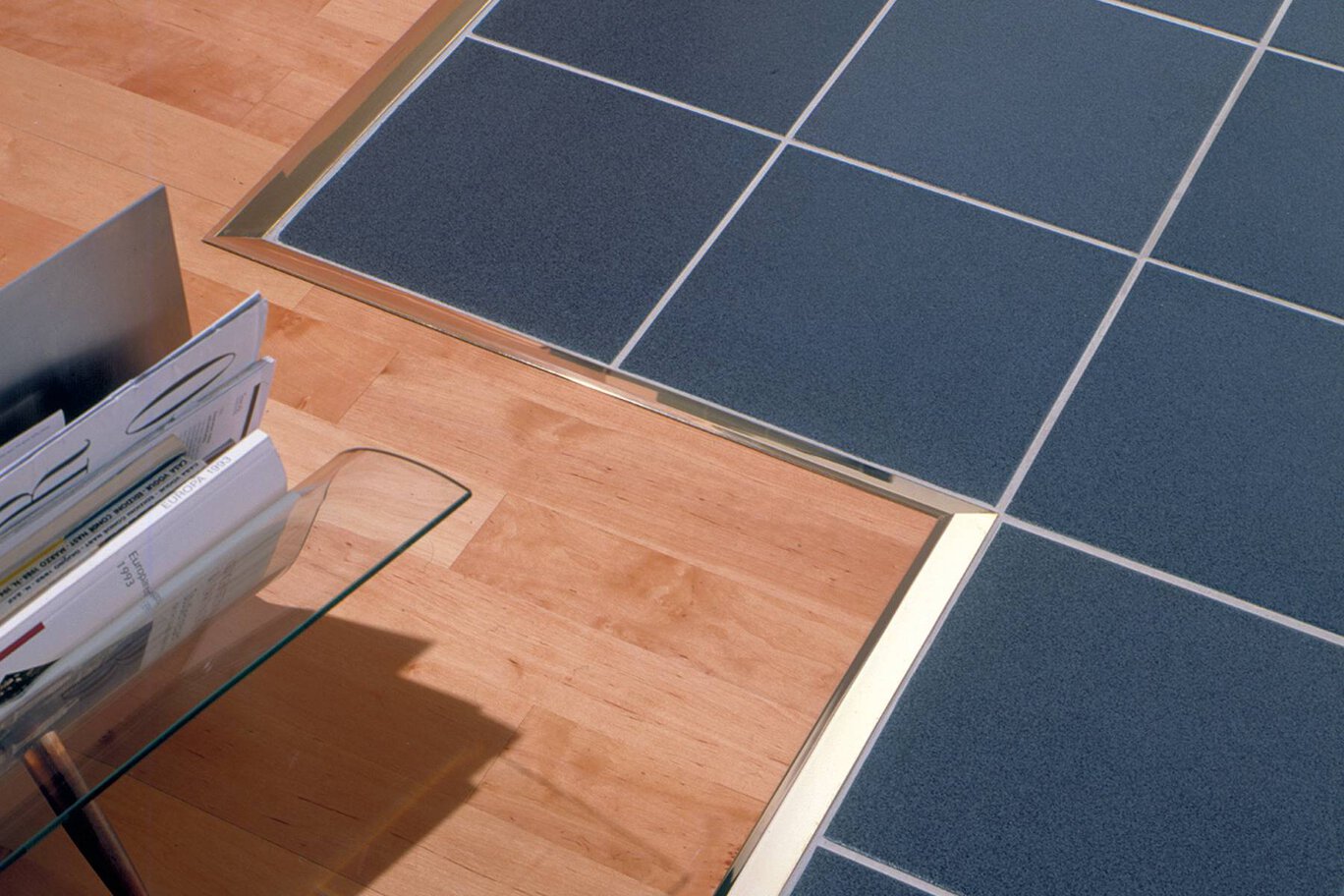

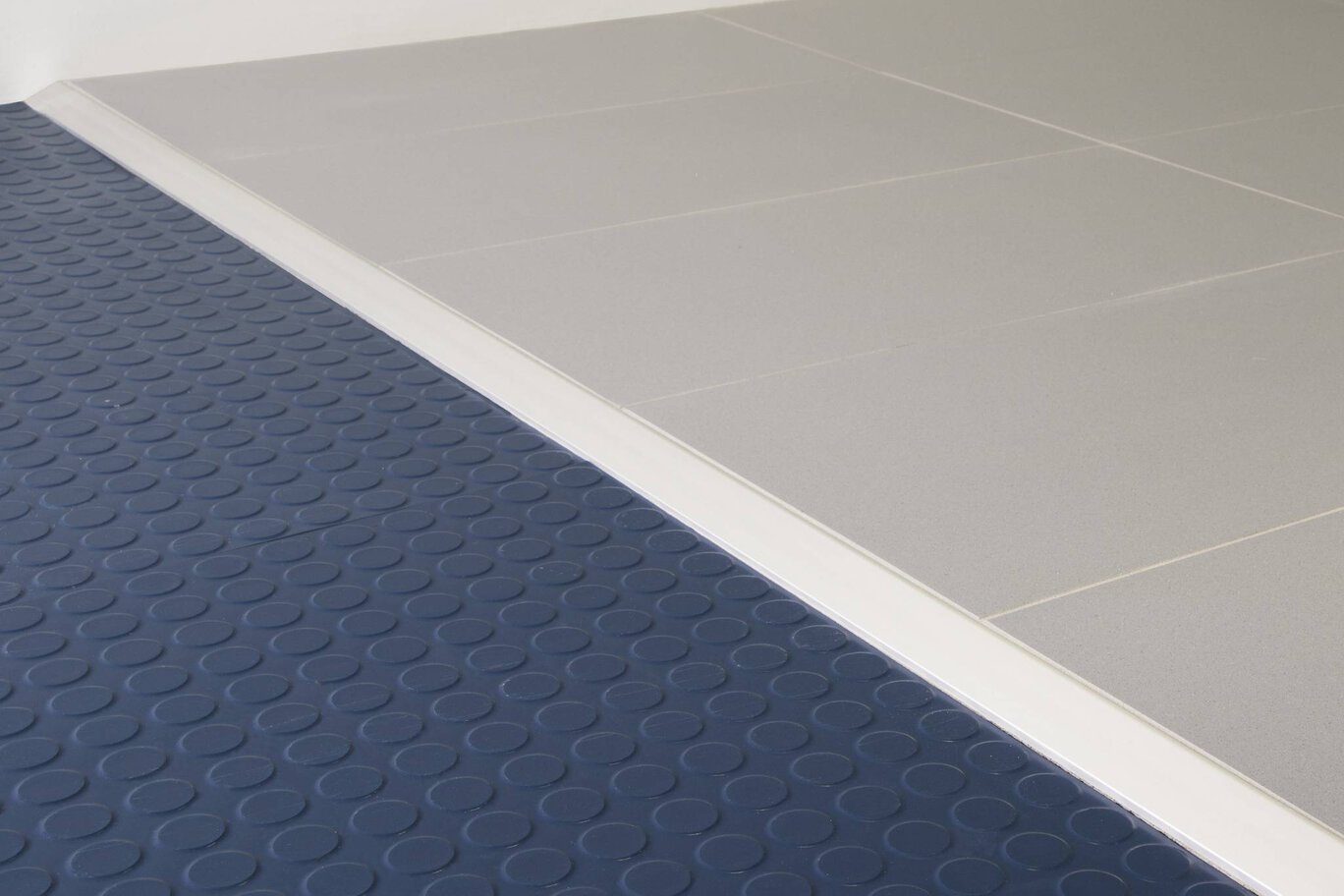

Schluter®-RENO-U is designed to protect tile edges and provide a smooth transition between tile coverings and floor coverings at lower elevations by abutting both surfaces.

  • Prevents tile edges from chipping
  • Creates smooth transitions to eliminate trip hazards
  • Ideal for transitions from tile coverings to finished concrete
  • Certain sizes are ADA-compliant
  • Available in stainless steel, solid brass, and anodized aluminum
Read more

Schluter®-RENO-U is designed to protect tile edges and provide a smooth transition between tile coverings and floor coverings at lower elevations by abutting both surfaces.

  • Prevents tile edges from chipping
  • Creates smooth transitions to eliminate trip hazards
  • Ideal for transitions from tile coverings to finished concrete
  • Certain sizes are ADA-compliant
  • Available in stainless steel, solid brass, and anodized aluminum
Configure Options Add to
Project
Dealer
Locator
Product
Table

Product successfully added to Project List

You can now access your Project List or stay on this page

Go to Project List Continue browsing

Uppsss...

Sorry, something went wrong. Please try again later.

Continue browsing
Share
Schluter<sup class='regsign'>®</sup>-RENO-U

Schluter®-RENO-U

Edge-protection profile for abutting tile to lower transitions
Schluter®-RENO-U
Schluter®-RENO-U
Schluter®-RENO-U
Schluter®-RENO-U
Schluter®-RENO-U

Product type

Next

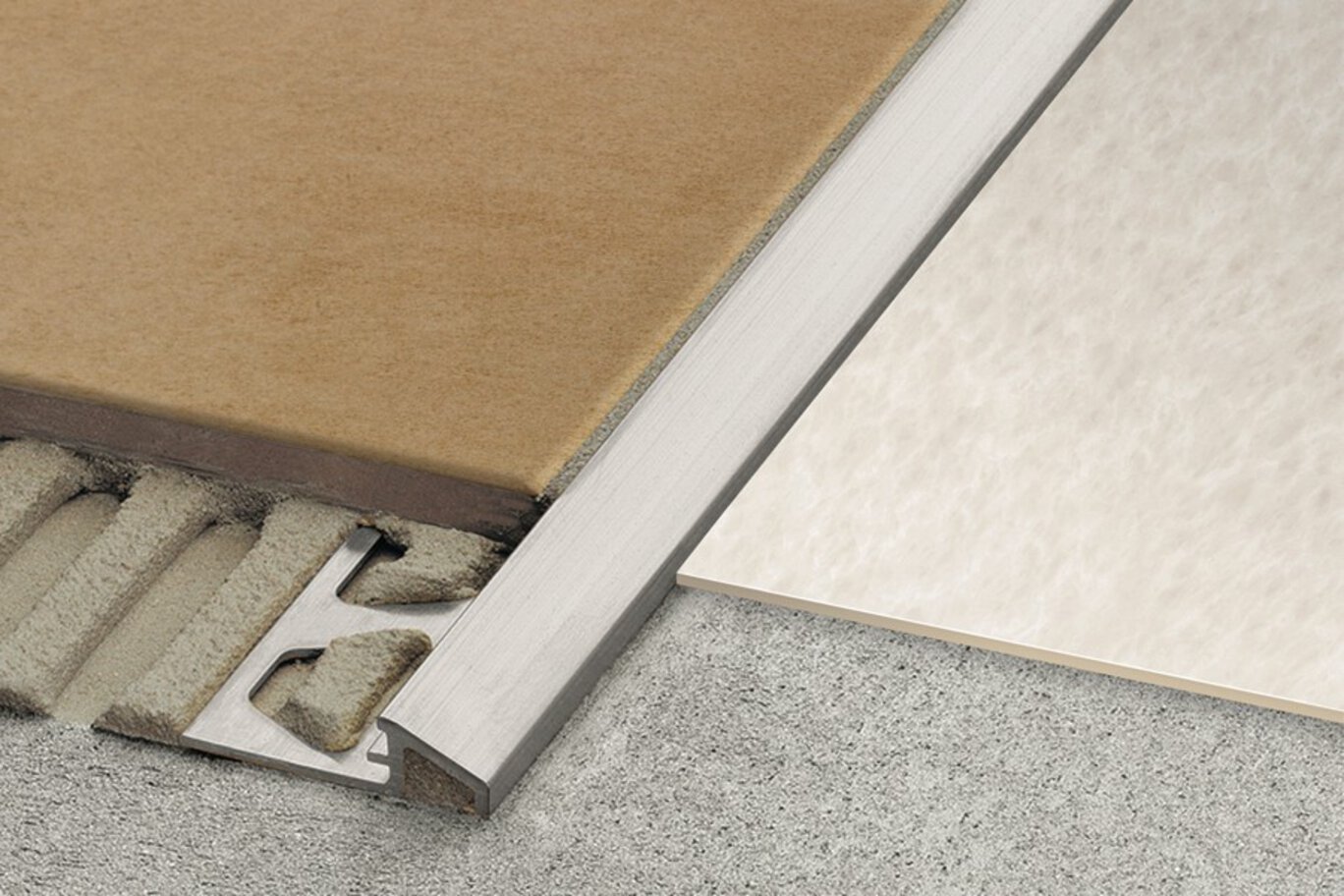

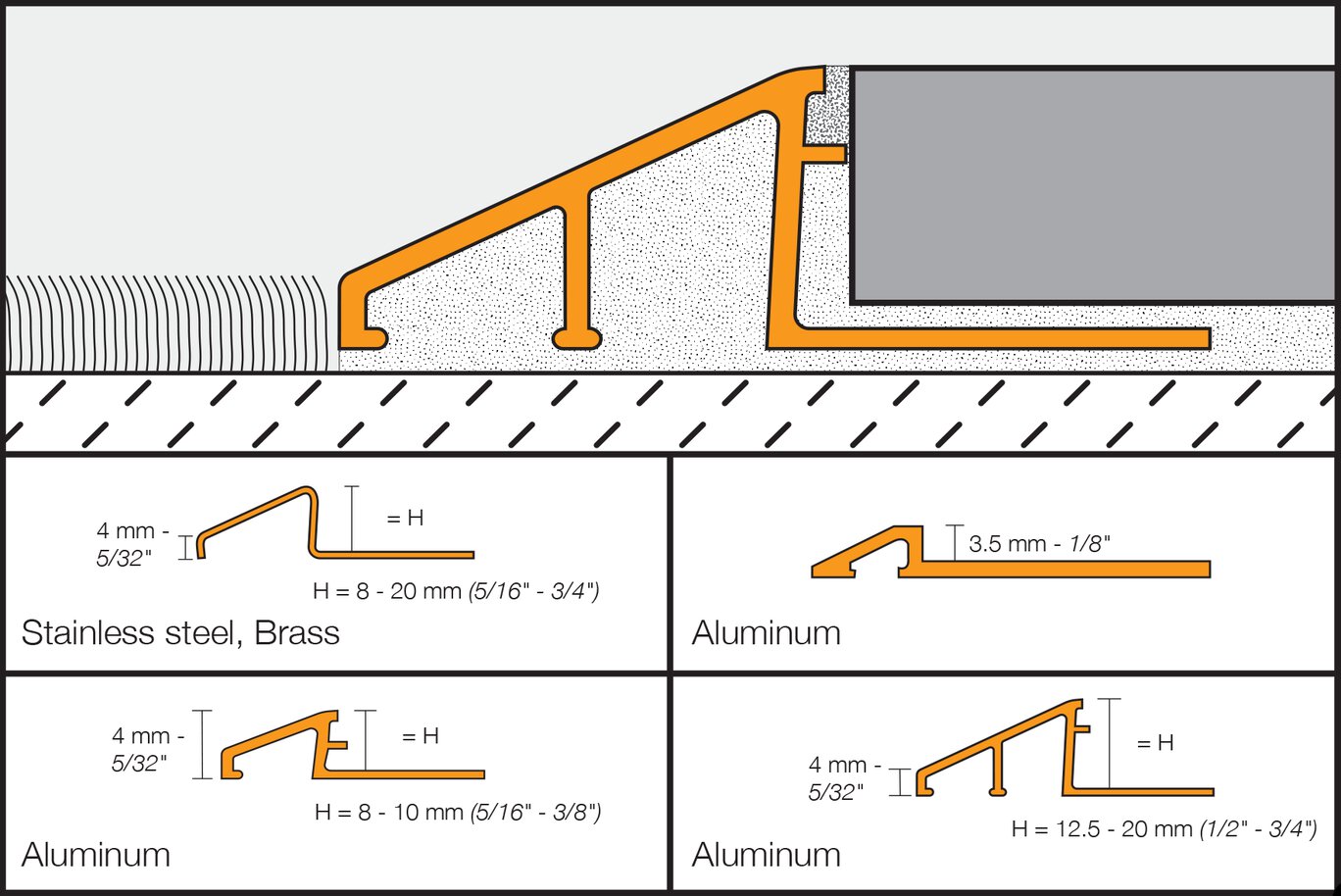

Schluter®-RENO-U is designed to provide a smooth transition between tile coverings and floor coverings at lower elevations or finished concrete. The profile is available in stainless steel, solid brass and anodized aluminum. RENO-U features a trapezoid-perforated anchoring leg, which is secured in the mortar bond coat beneath the tile, and a sloped surface (approximately 25°) that eliminates trip hazards and protects tile edges. The leading edge of the profile abuts the lower surface covering, typically VCT. RENO-U, in aluminum, features an integrated joint spacer that establishes a defined joint cavity between the tile and the profile. In installations where the leading edge abuts a lower surface covering, all sizes of RENO-U, except the 3/4" (20 mm) and 11/16" (17.5 mm), are compliant with the Americans with Disabilities Act (ADA). In installations where the leading edge rests on top of the lower floor covering (e.g., finished concrete), the 3/4" (20 mm), 11/16" (17.5 mm), and 9/16" (15 mm) sizes are not ADA-compliant.

1. Select the profile according to tile thickness.

2. Fill the cavity beneath the sloped section of the profile with thin-set mortar.

3. Using a notched trowel, apply thin-set mortar to the area where the profile is to be placed.

4. Press the perforated anchoring leg of the profile into the mortar and align.

5. Trowel additional thin-set mortar over the perforated anchoring leg to ensure full coverage and support of the tile edges.

6. Solidly embed the tiles so that the tiled surface is flush with the top of the profile; the profile should not be higher than the tiled surface, but rather up to approx. 1/32" (1 mm) lower.

7. Set the tile to the integrated joint spacer, which ensures a uniform joint of 1/16" - 1/8" (1.5 - 3 mm). With the stainless steel profiles, leave a space of approximately 1/16" - 1/8" (1.5 - 3 mm).

8. Fill the joint completely with grout or setting material.

9. Remove grout or mortar residue from the visible surface of the profile.

The Schluter®-RENO-U profile requires no special maintenance or care and is resistant to mold and fungi. Clean profiles using common household cleaning agents.

Stainless steel surfaces exposed to the environment or aggressive substances should be cleaned periodically using a mild household cleaner. Regular cleaning maintains the neat appearance of stainless steel and reduces the risk of corrosion. All cleaning agents must be free of hydrochloric and hydrofluoric acid and chlorides. Stainless steel surfaces develop a sheen when treated with a chrome-polishing agent.

Oxidation films on exposed solid brass or aluminum can be removed by using a conventional polishing agent, but will form again.

In the case of anodized aluminum, do not use abrasive cleaning agents.
