Showers

The timeless beauty of ceramic and stone tiles enhances the aesthetics of any bathroom. Tiled showers, steam showers, and bathtub surrounds are luxurious and elegant and add to the value of your home.

Tiles are not inherently waterproof, however, and must be installed in conjunction with a waterproofing system that effectively manages moisture to protect moisture-sensitive building materials and control mold growth.

Assemblies achieved using the Schluter®-Shower System reduce total installation time and eliminate the risk of failures due to water and vapor penetration, thus preventing efflorescence and mold growth.

Many components come into play when building a watertight and waterproof tiled shower. Schluter® offers you various options that will help you save on installation time, while accommodating your taste and needs.

Waterproofing options

Schluter®-KERDI waterproofing membrane over solid backing

  • Thickness: 8 mil (0.2 mm)
  • Pliable, easy to install, and guarantees uniform thickness for reliable performance
  • Suitable for use in showers, bathtub surrounds, and intermittent-use steam showers

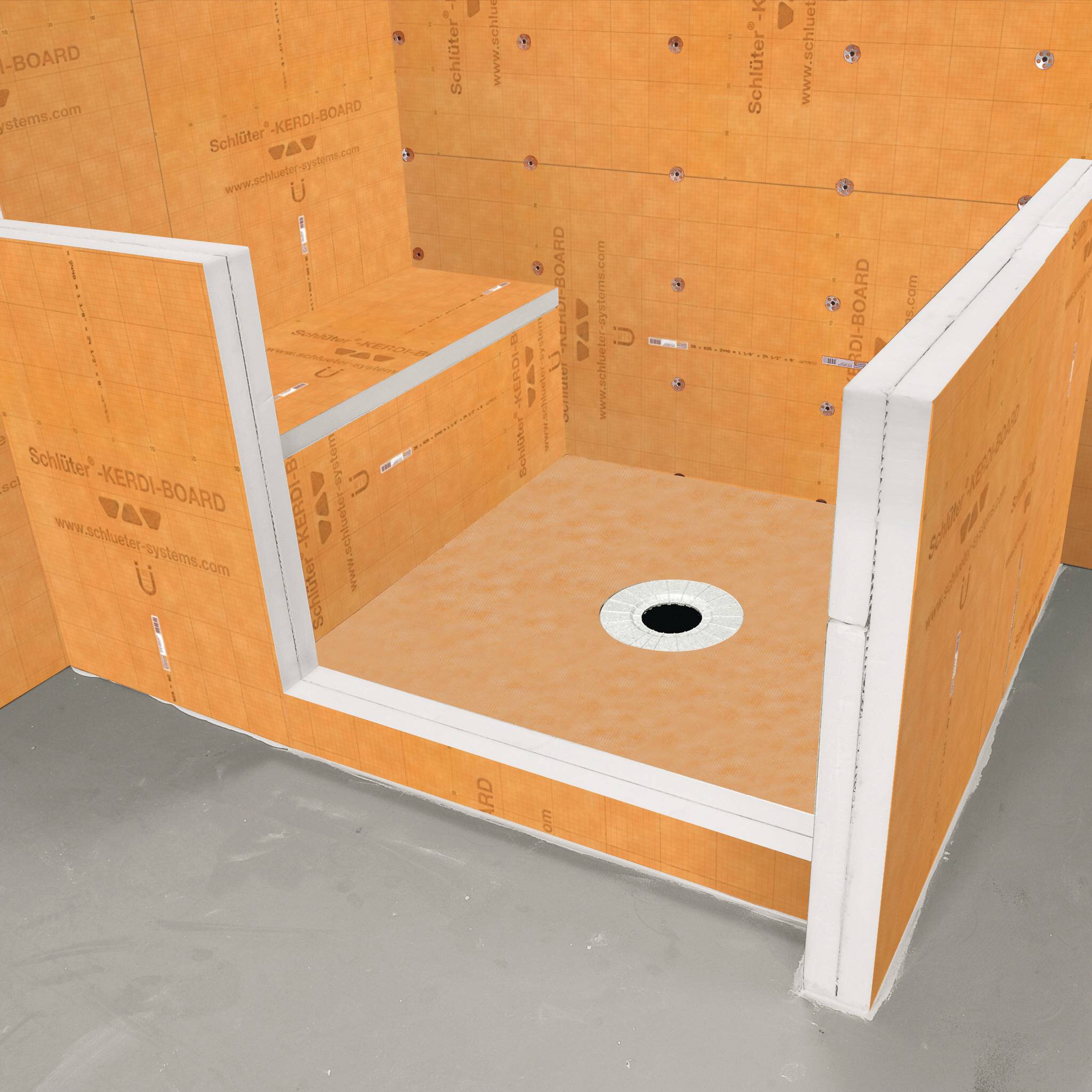

Schluter®-KERDI-BOARD waterproof building panel

  • Lightweight, easy to cut and install XPS foam panel
  • Combines substrate installation and waterproofing
  • Suitable for use in showers, bathtub surrounds, and intermittent-use steam showers

Drain options

  • Integrated bonding flange ensures waterproof connection at top of assembly
  • Can be installed with prefabricated foam shower trays or mortar bases
  • Simple connection to standard drain outlets for new construction or renovation
  • Grate assemblies accommodate a wide range of tile thicknesses

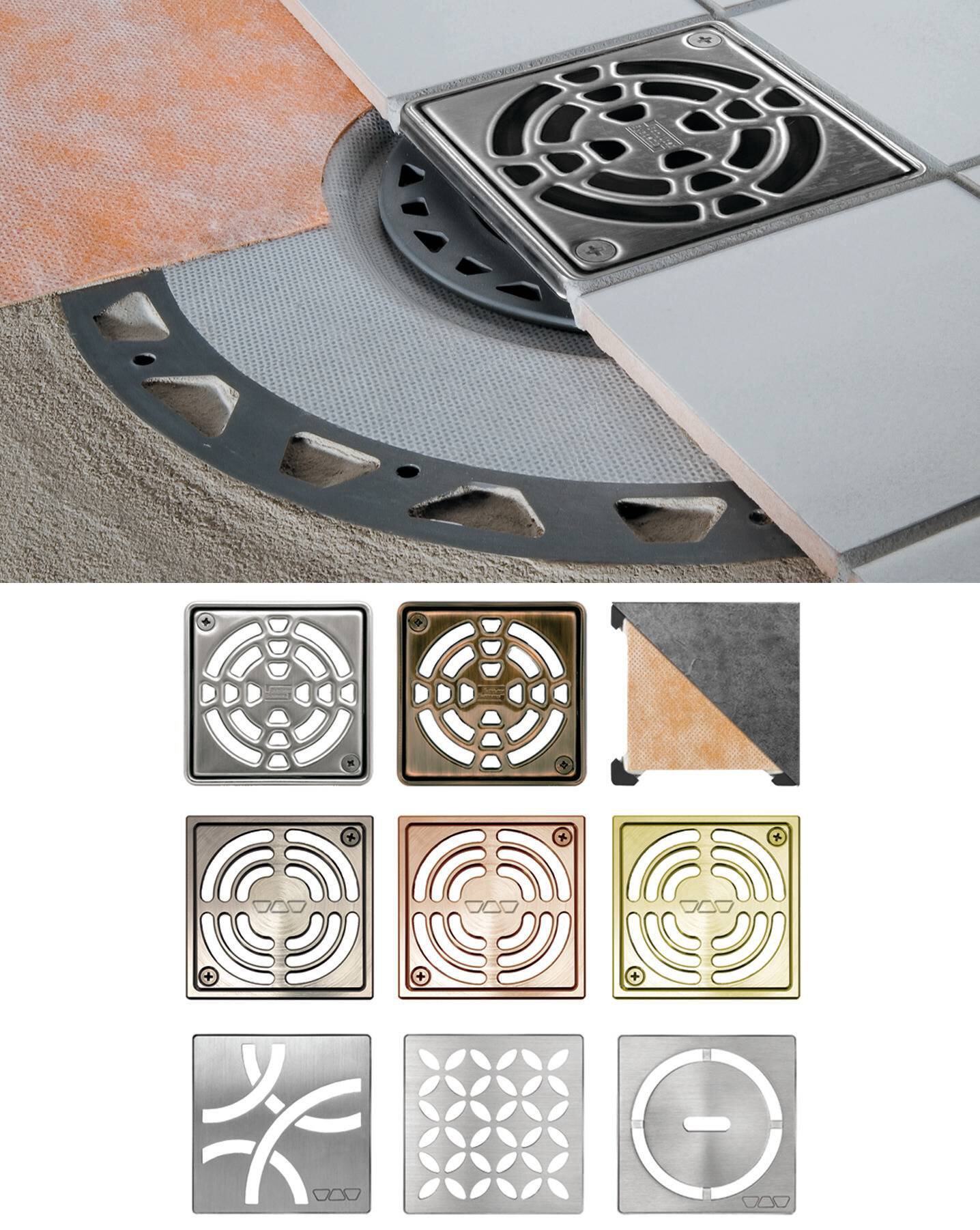

Schluter®-KERDI-DRAIN

  • Fully adjustable square grate assemblies minimize and simplify tile cuts
  • Available with 2" or 3" (50 mm or 75 mm) outlets
  • Adaptor kits allow for conversion of existing clamping ring drain to KERDI-DRAIN



KERDI-DRAIN installation

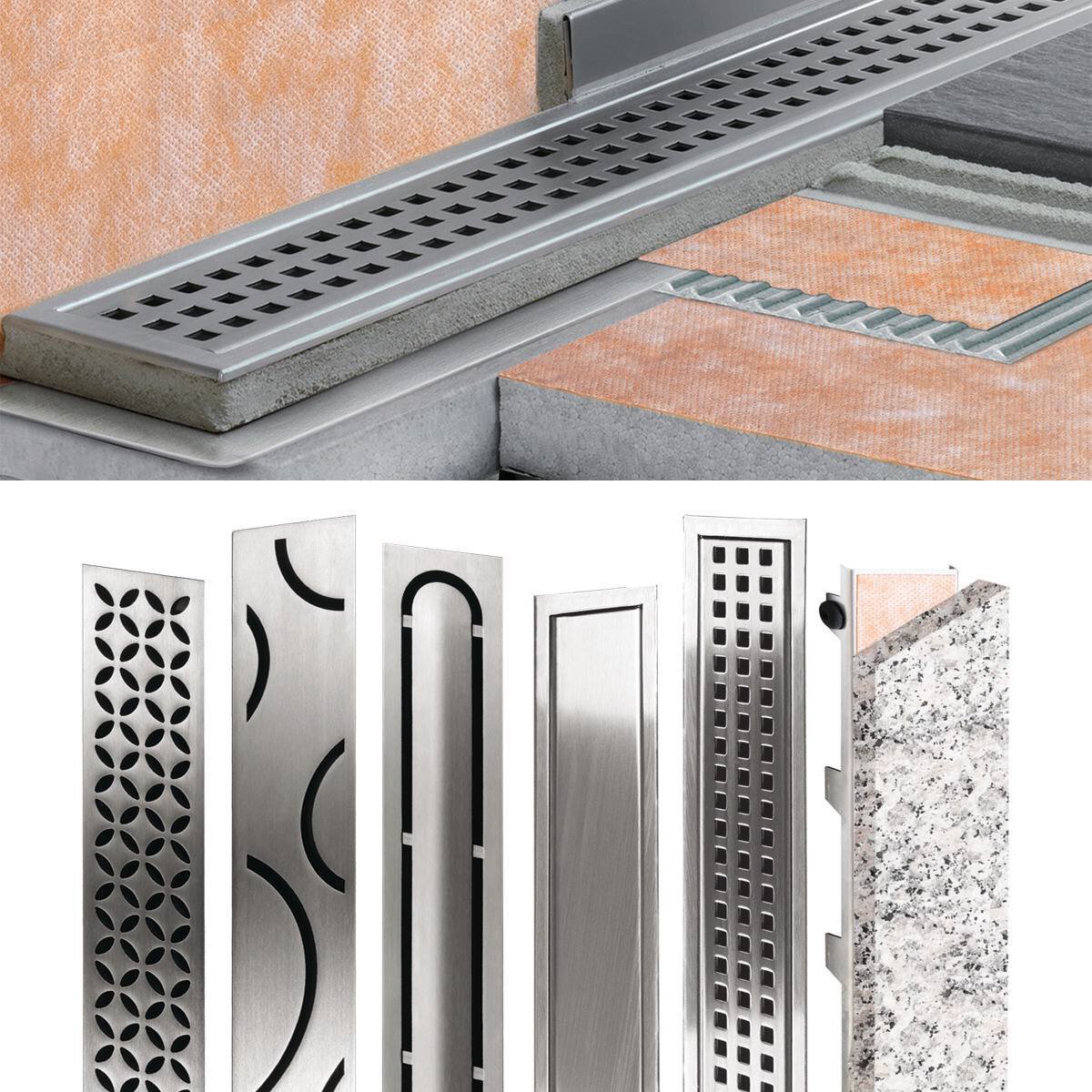

Schluter®-KERDI-LINE

  • Accommodates single-plane slope and large-format tile installation
  • Can be installed adjacent to walls or at intermediate locations

KERDI-LINE installation

Shower base options

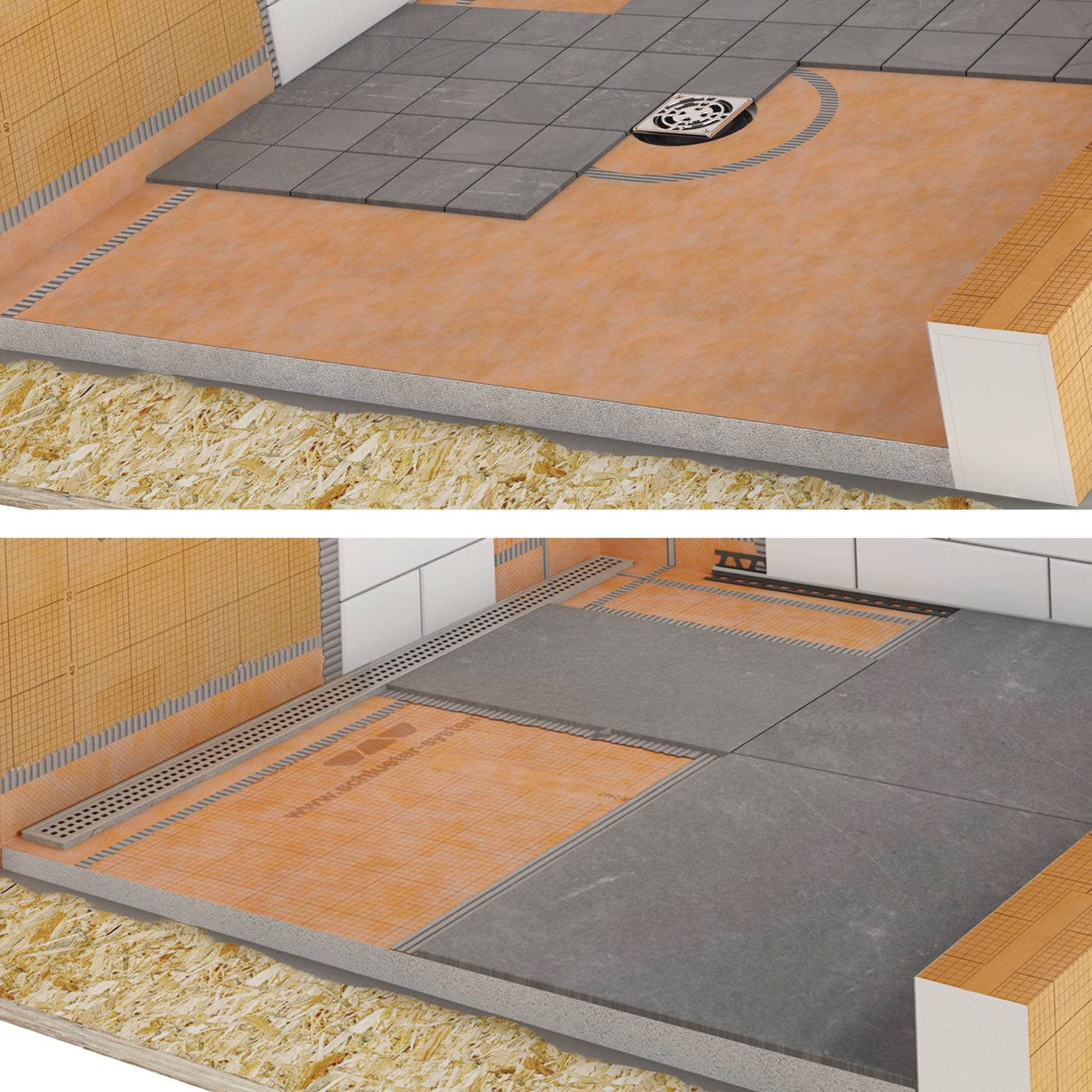

Schluter prefabricated shower trays

  • Lightweight, easy to install
  • Reduces installation time
  • Available in a variety of formats to suit your installation needs, including trays designed for both point and linear drains
  • Can be cut to size or extended using dry pack mortar

How to extend a prefabricated shower tray

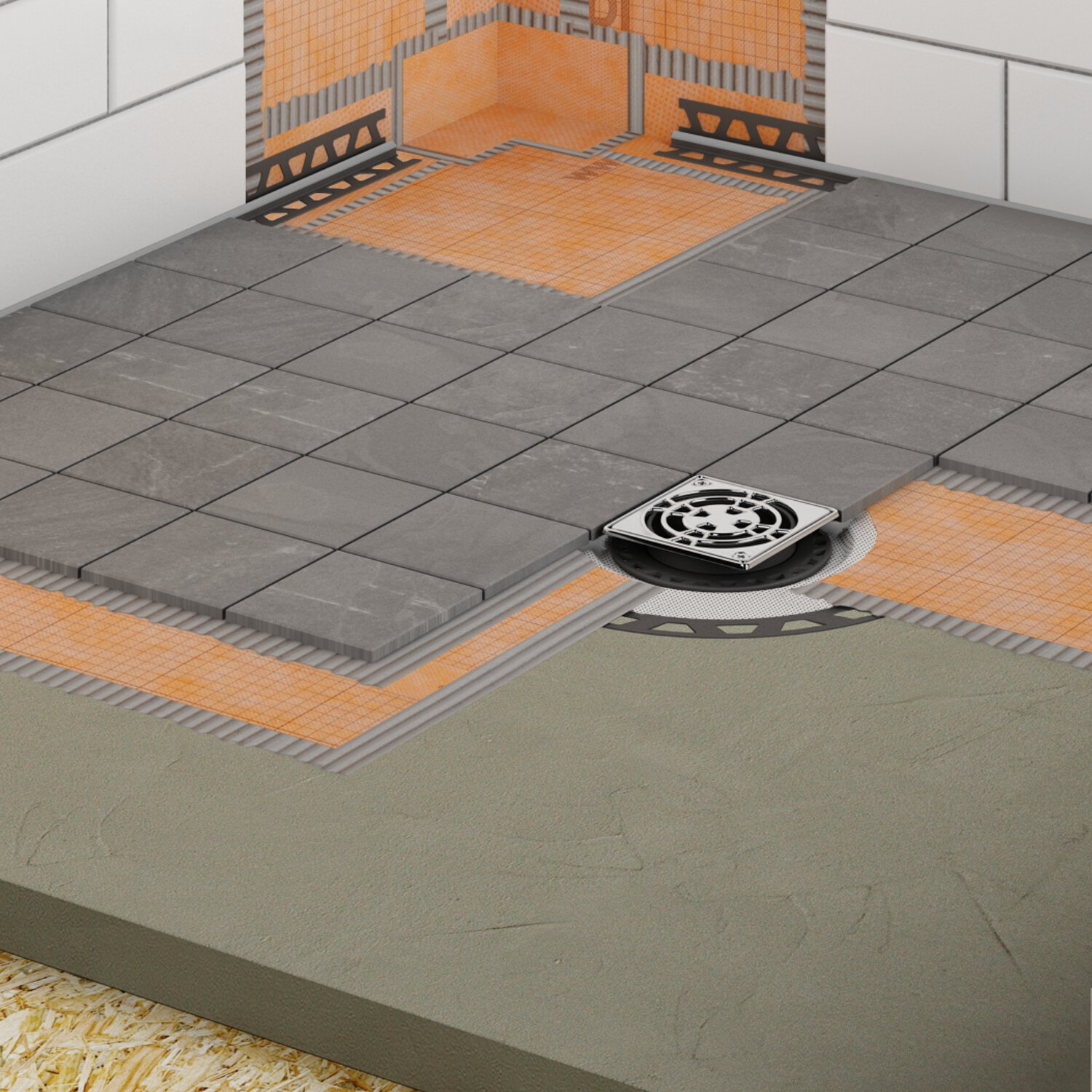

Portland cement mortar bed

  • Base can be built for custom shower, fits any shape
  • Especially suited for off-set drain placement

Schluter®-Shower System with a mortar bed

Curb options

Tip! See how to cut our prefabricated shower substrates

Schluter®-KERDI-BOARD curb

  • Customizable to fit any application
  • Build as desired (e.g., length, width, height)
  • Can be installed over various materials (e.g., masonry, wood)

Built-up curb

  • Customizable to fit any application
  • Can be built as desired (e.g., length, width, height)

Schluter®-KERDI-SHOWER-SC curb

  • Preformed, lightweight and easy to install
  • Can be cut to length
  • Can be used with Schluter prefabricated shower trays or mortar base applications

Bench options

Schluter®-KERDI-SHOWER-SB bench

  • Preformed, lightweight, easy to install
  • Available in triangular and rectangular shapes in various sizes



Schluter®-KERDI-BOARD bench

  • Customizable to fit any application, can be built as desired
  • Combines substrate installation and waterproofing



Custom Elements

Shower niche

Schluter®-KERDI-BOARD-SN shower niche

  • Prefabricated shower niche made of KERDI-BOARD
  • Preformed, lightweight, easy to install
  • Various sizes available

How to install a shower niche

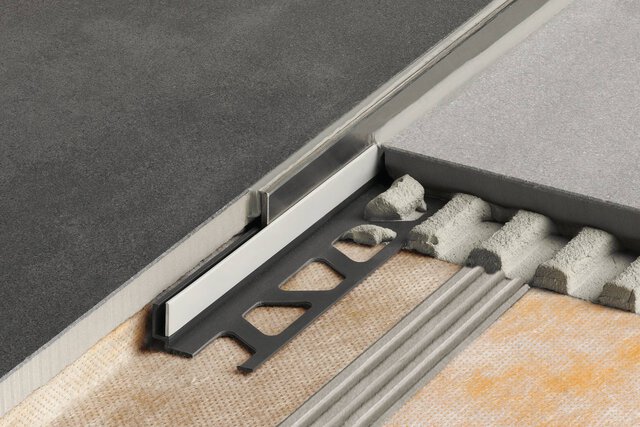

Shower profiles

Schluter®-SHOWERPROFILE-R/-S/-WS/-WSK shower profiles

These profiles are used to enhance tiled shower applications, providing splashguards at the entrances to curbless showers, support channels for glass walls, and wall finishing that eliminates the need to cut wedges of tile in KERDI-LINE applications.

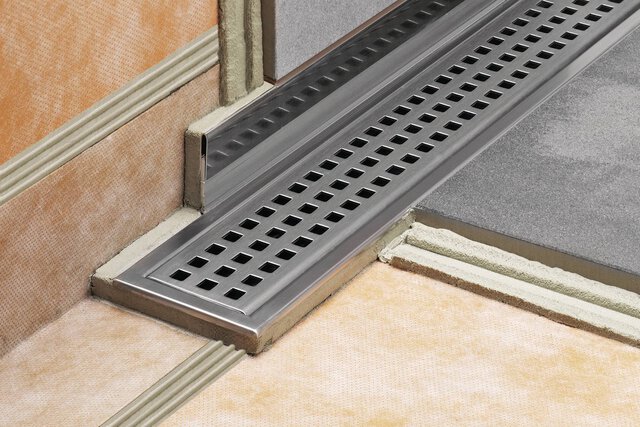

Schluter®-SHOWERPROFILE-R

Schluter®-
SHOWERPROFILE-R

A specialty profile designed to cover the exposed wall area when using the KERDI-LINE linear drain

Schluter®-SHOWERPROFILE-S

Schluter®-
SHOWERPROFILE-S

Two-part profile with tapered edge to cover adjoining tile edges

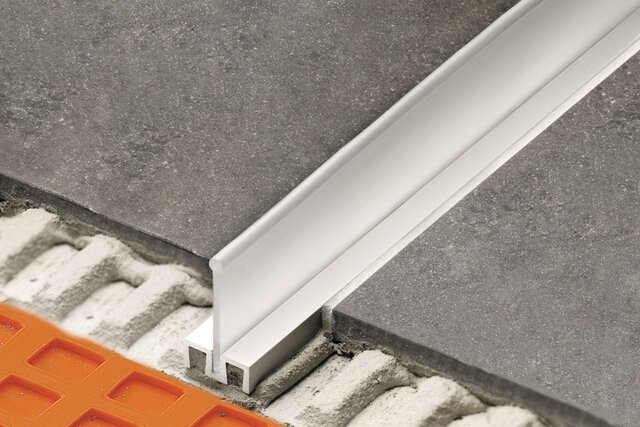

Schluter®-SHOWERPROFILE-WS

Schluter®-
SHOWERPROFILE-WS

Profile that forms a splashguard in barrier-free showers



Choose your shower:

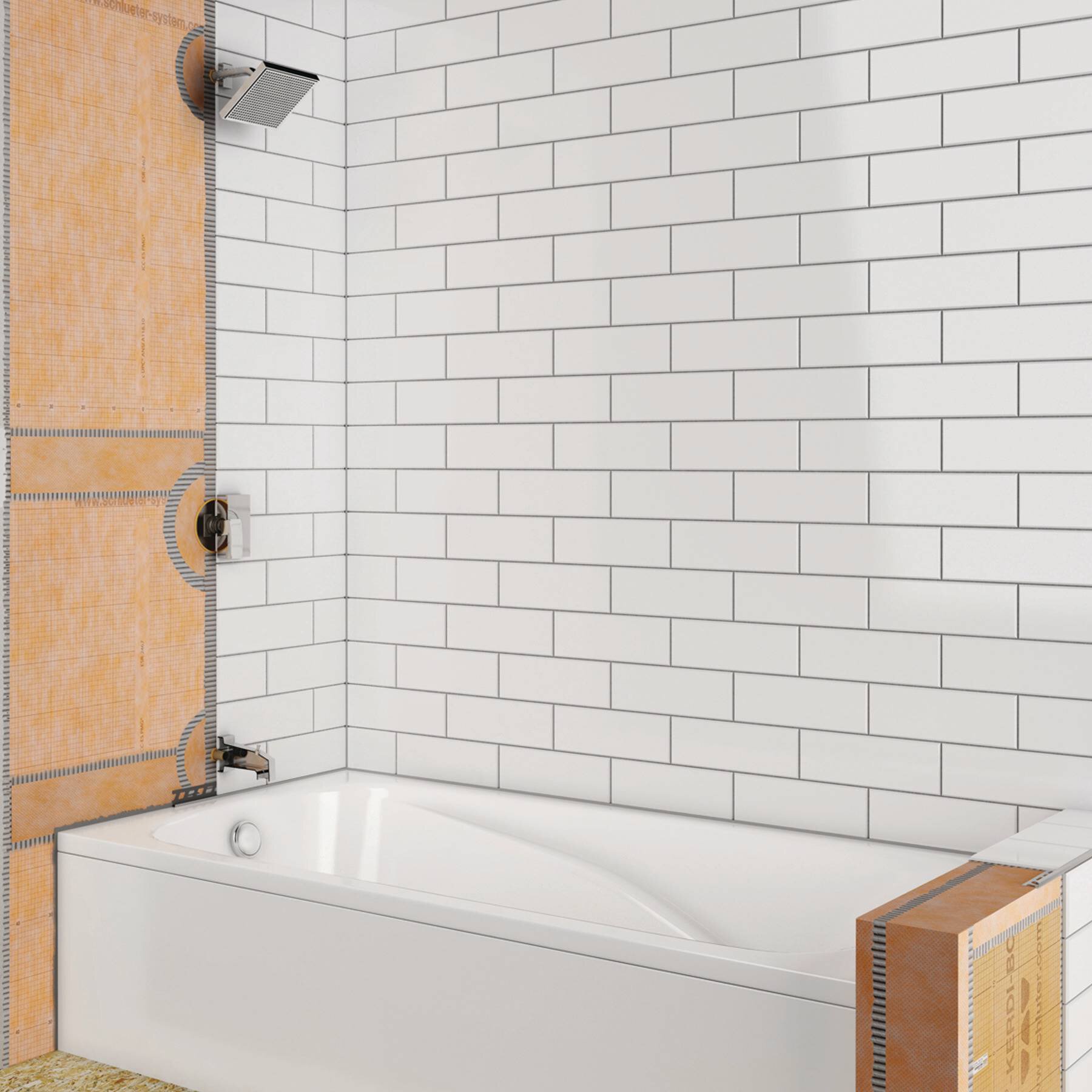

Shower with bathtub

Find out how to waterproof the walls surrounding your bathtub.

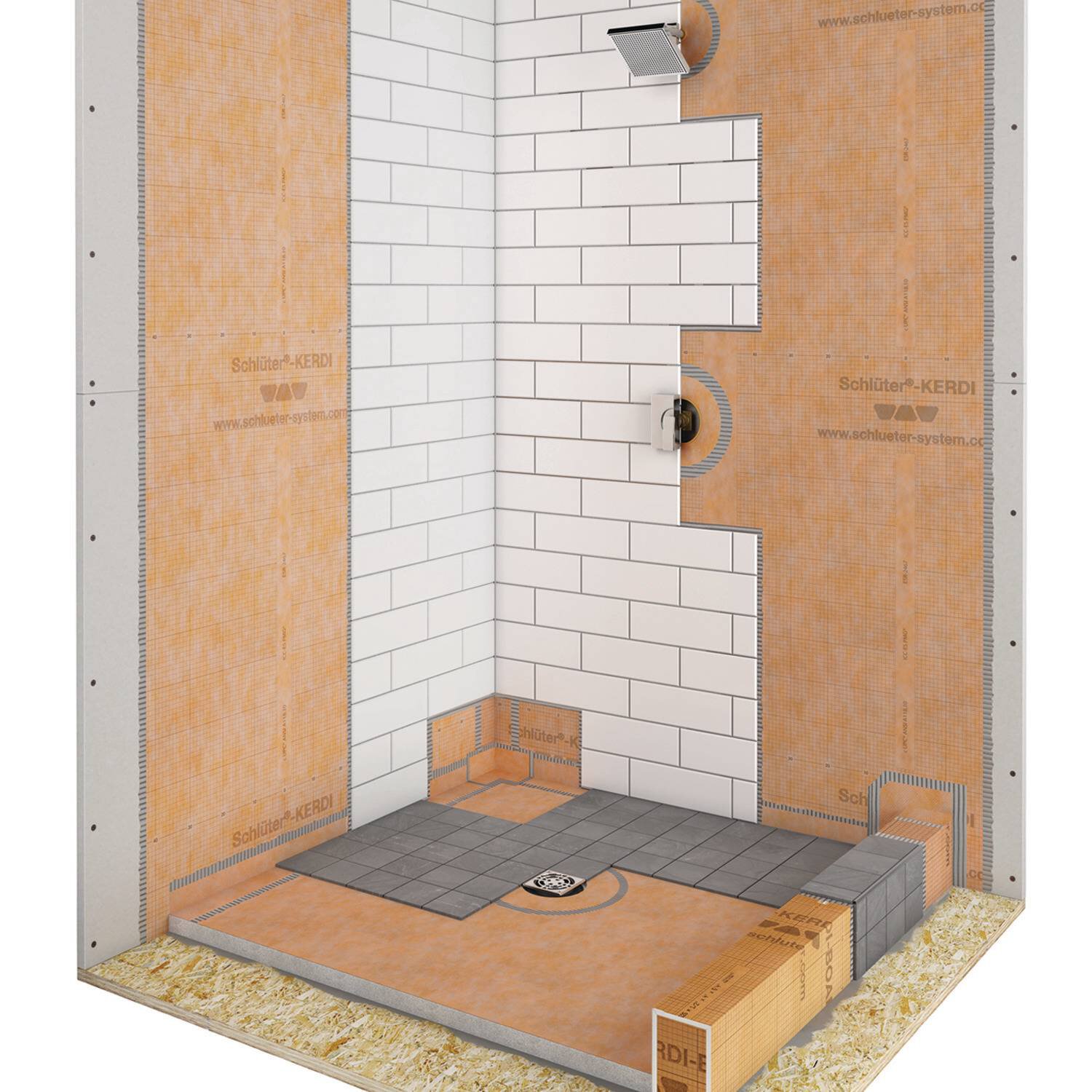

Shower with point drain

Find out more about effective moisture management and drainage for showers with point drains.

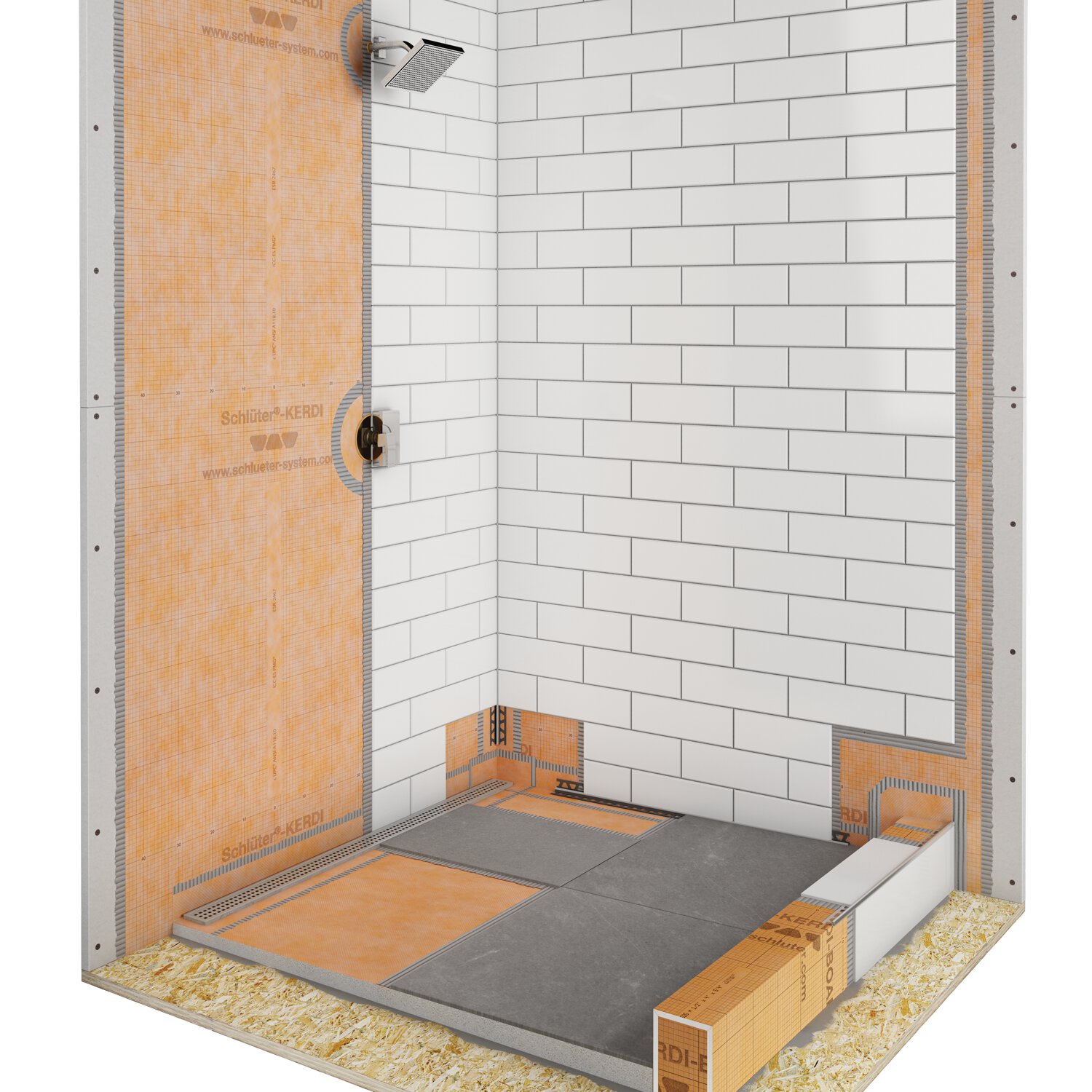

Shower with linear drain

Find out more about effective moisture management and drainage for showers with linear drains.

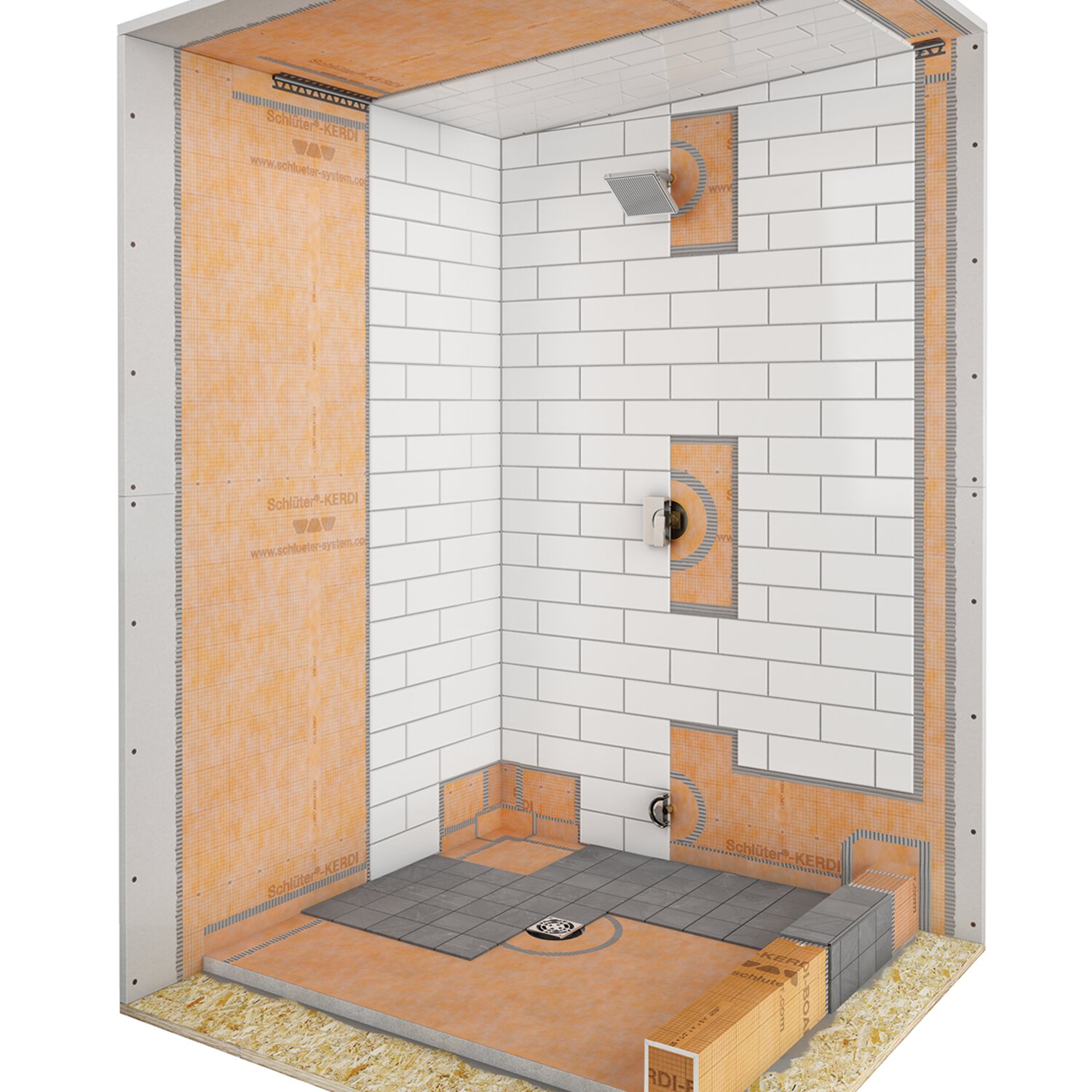

Residential steam showers

Find out about waterproofing requirements for residential steam showers.

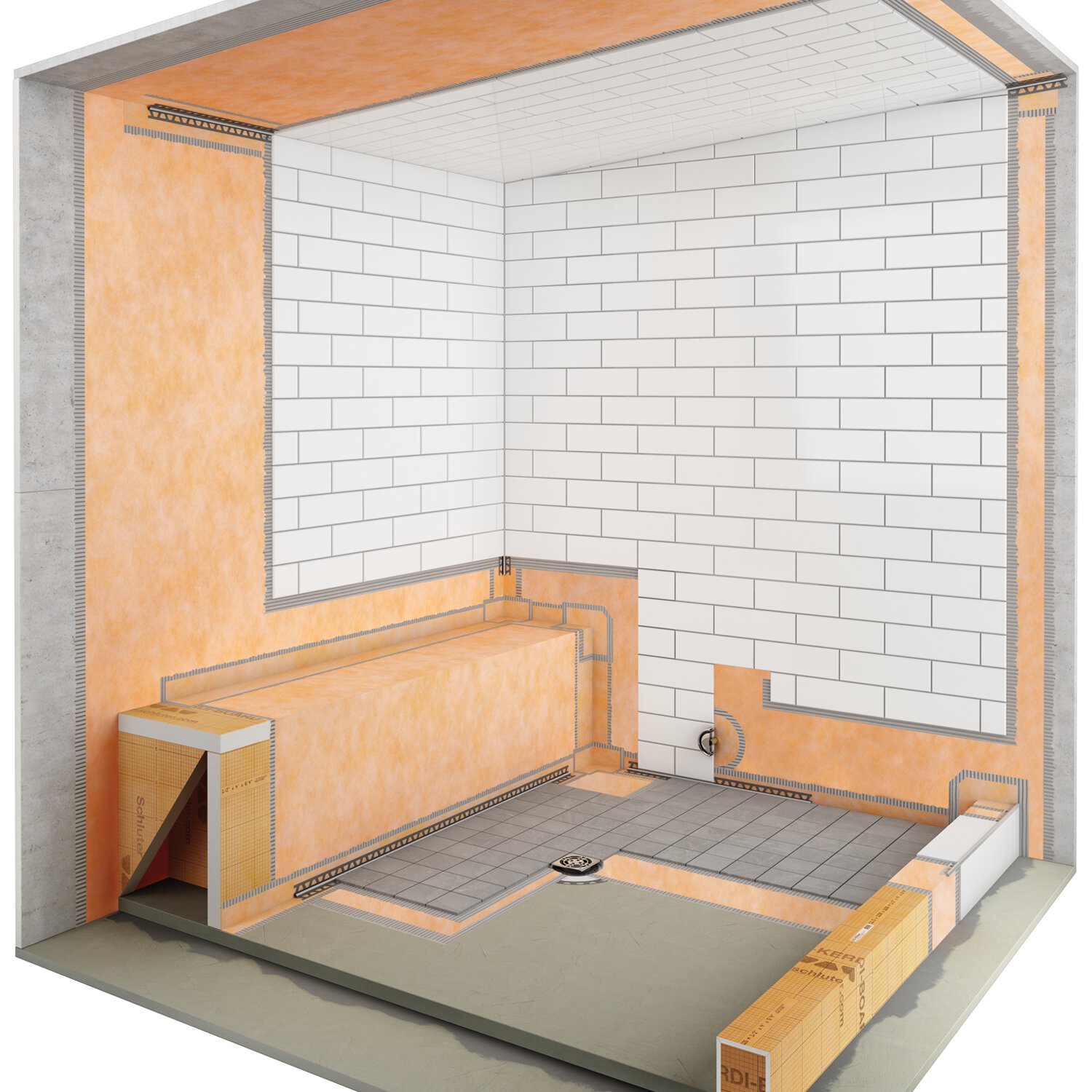

Commercial steam showers

Find out about waterproofing requirements for commercial steam showers.
