Schluter®-DILEX-EZ

Decorative movement joint profile for wall and floor applications

Schluter®-DILEX-EZ combines decorative design with stress-relieving function for tile and stone set in a thin bed of adhesive.
  • Designed to allow movement and reduce stress in large, tiled areas
  • Eliminates the need for caulking
  • Prevents cracking and delamination of tiles
  • Flexible and can be used to form curves
  • Suitable for residential to medium-duty commercial applications
  • Sidewalls are made of rigid PVC
  • Movement zones are made of soft PVC
 ...read more  ...show less

Product type

Select all options to find the
specific product you want to buy.

Find recommended accessories here

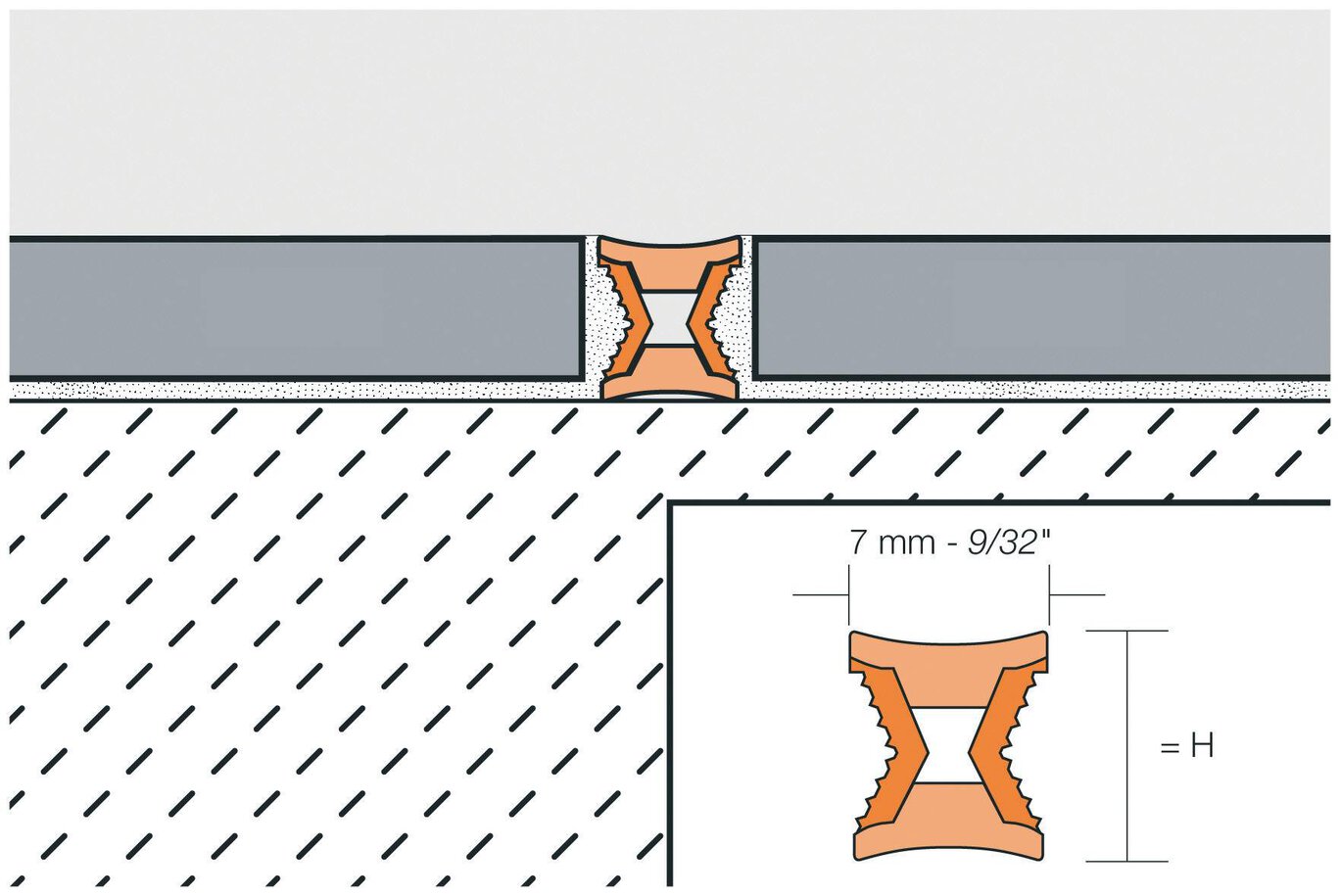

Schluter®-DILEX-EZ 6 + 9 feature rigid PVC side walls, which are connected on top and bottom by soft PVC movement zones that form the visible surfaces. These profiles separate individual fields in the tile covering and accommodate movement through the soft PVC movement zones. Each profile features two usable surfaces in different colors for increased design options. One surface of the profile features the PVC movement zone in a solid color, while the other surface features a brass or chrome inlay embedded in the PVC movement zone. DILEX-EZ 6 and 9 are flexible and can be used to form curves. The height, “H”, of DILEX-EZ 6 is 1/4" (6 mm); the height, “H”, of DILEX-EZ 9 is 11/32" (9 mm).

DILEX-EZ profiles require no special maintenance or care and are resistant to mold and fungi. Clean profile using common household cleaning agents.

1. Select DILEX-EZ 6 or DILEX-EZ 9 according to tile thickness. For tile thicknesses greater than 11/32" (9 mm), DILEX-EZ 9 must be backbuttered with thin-set mortar.

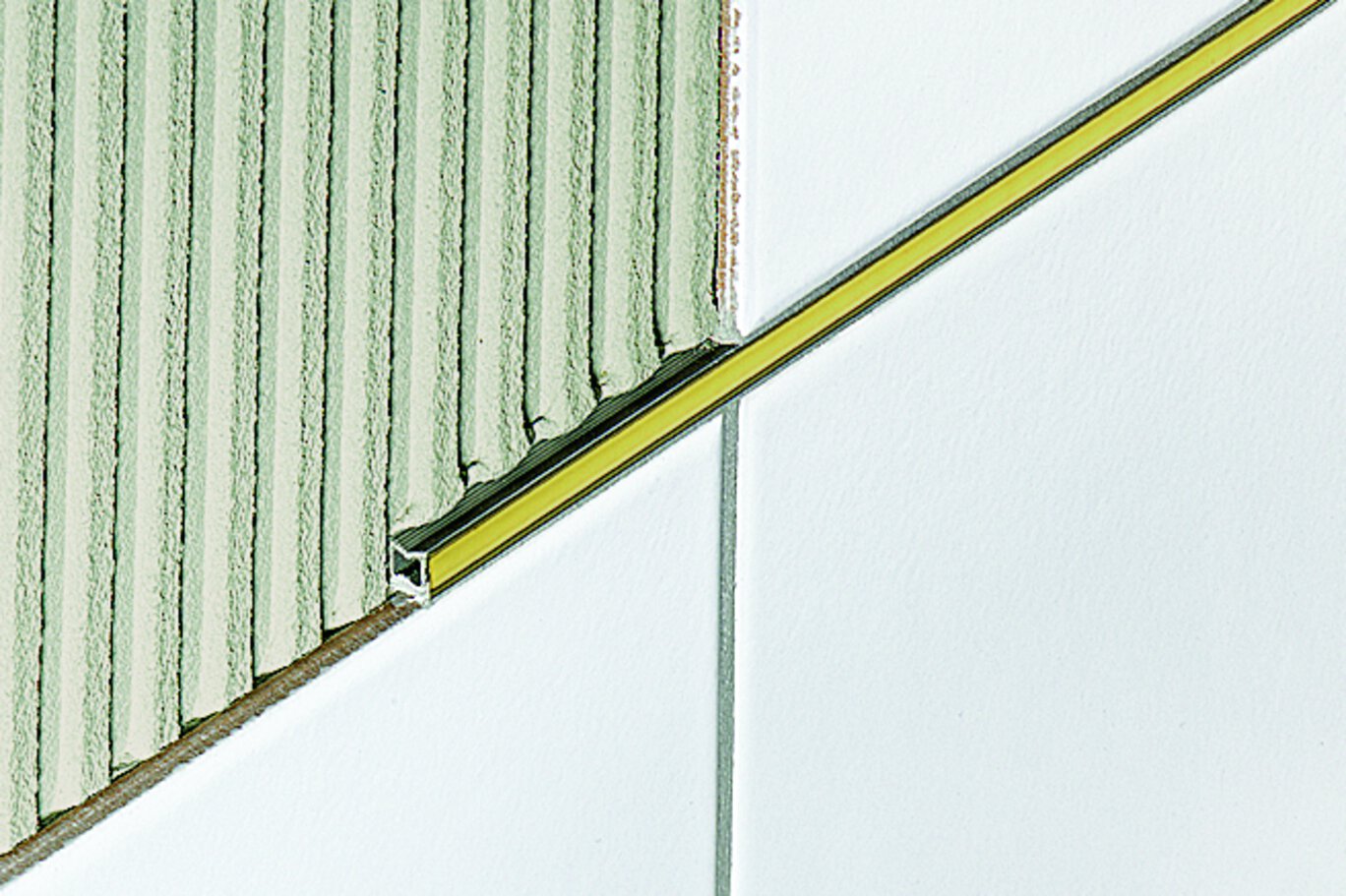

2. Set tiles up to the point where DILEX-EZ is to be installed. Apply thin-set mortar to tile edges. The profile must align directly with movement joints in the substrate below. Press the profile against the tile edge and flush with the tile surface so that the ribbed, hourglass-shaped section is completely embedded in the mortar.

3. For the next row of tiles, apply thin-set mortar to the side wall of the DILEX-EZ profile already in place; then press the tiles against the profile so that they are flush with the profile surface.

4. DILEX-EZ may be installed with or without a small joint to the adjacent tile.
