Schluter®-SHELF-E

The Schluter®-SHELF-E is a brushed stainless steel corner shelf designed for tiled walls.

  • Installation is simplified with installation without drilling, that simply integrates into the joint pattern

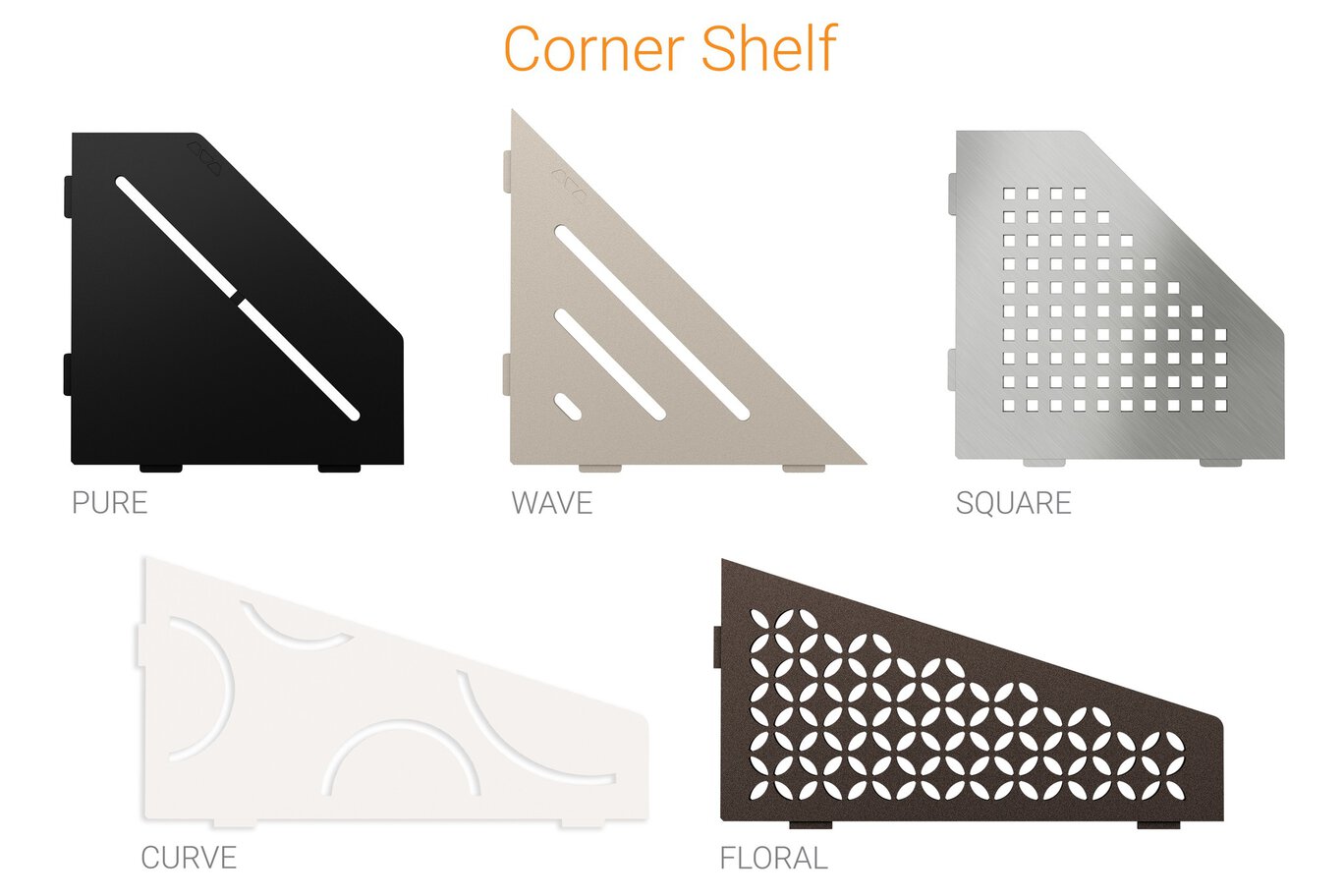

  • Available in 3 shapes and in the Floral and Curve stainless steel STYLE designs
  • Features 3/32” (2 mm) thick anchoring tabs to ease installation
  • Matching drain grates available
Read more

The Schluter®-SHELF-E is a brushed stainless steel corner shelf designed for tiled walls.

  • Installation is simplified with installation without drilling, that simply integrates into the joint pattern
  • Available in 3 shapes and in the Floral and Curve stainless steel STYLE designs
  • Features 3/32” (2 mm) thick anchoring tabs to ease installation
  • Matching drain grates available
Configure to Price Add to
Project
Dealer
Locator
Product
Table

Product successfully added to Project List

You can now access your Project List or stay on this page

Go to Project List Continue browsing

Uppsss...

Sorry, something went wrong. Please try again later.

Continue browsing
Share
Schluter<sup class='regsign'>®</sup>-SHELF-E

Schluter®-SHELF-E

Corner shelf for tiled walls
Schluter®-SHELF-E
Schluter®-SHELF-E
Schluter®-SHELF-E
Schluter®-SHELF-E
Schluter®-SHELF-E
Schluter®-SHELF-E
Schluter®-SHELF-E
Schluter®-SHELF-E

Product type

Next

Schluter®-SHELF-E is a wall storage system available in brushed stainless steel. The shelves are 5/32″ (4 mm) -thick and feature designs coordinating with the Curve and Floral styles found in KERDI-DRAIN and KERDI-LINE drain grates. They can be used in showers and other tiled wall applications (e.g., kitchens and baths). SHELF-E is suitable for corner installations and available in three different shapes. It features 3/32″ (2 mm) -thick tabs that allow for installation with the tile or in retrofit applications.

Corner - installation in conjunction with tile

1. Install the wall tile with joints 3/32″ (2 mm) wide or greater and clean the setting material from the joint where the SHELF-E will be installed.

2. Mark the tiles 3/8″ (10 mm) from the outside corners of the SHELF-E.

3. Install the grout, making sure to leave the area from the marks to the inside corner open.

4. After the grout has set, fill the open joint with sealant that is suitable for the application (e.g., silicone.)

5. Insert the SHELF-E and provide temporary support as required.

6. Seal the joint between the SHELF-E and the wall tile on the top and bottom surfaces with sealant that is suitable for the application (e.g., silicone.)

7. Allow the sealant to cure prior to using the SHELF-E.

Corner - retrofit

1. Determine the grout joint where the SHELF-E will be installed.

2. Mark the tiles where the SHELF-E tabs will be inserted.

3. Remove the grout from these locations using a suitable means (grout removal hand tool, oscillating tool, angle grinder, etc.). Take care not to damage the waterproofing layer behind the tile covering.

4. Fill the gaps in the joint with sealant that is suitable for the application (e.g., silicone.)

5. Insert the SHELF-E and provide temporary support as required.

6. Seal the joint between the SHELF-E and the wall tile on the top and bottom surfaces with sealant that is suitable for the application (e.g., silicone.)

7. Allow the sealant to cure prior to using the SHELF-E.

Schluter®-SHELF require no special maintenance or care and is resistant to mold and fungi. Clean shelves periodically using neutral cleaning agents. Regular cleaning maintains the neat appearance of stainless steel and reduces the risk of corrosion. All cleaning agents must be free of hydrochloric, hydrofluoric acid, and chlorides. Stainless steel surfaces develop a sheen when treated with a chrome-polishing agent.
