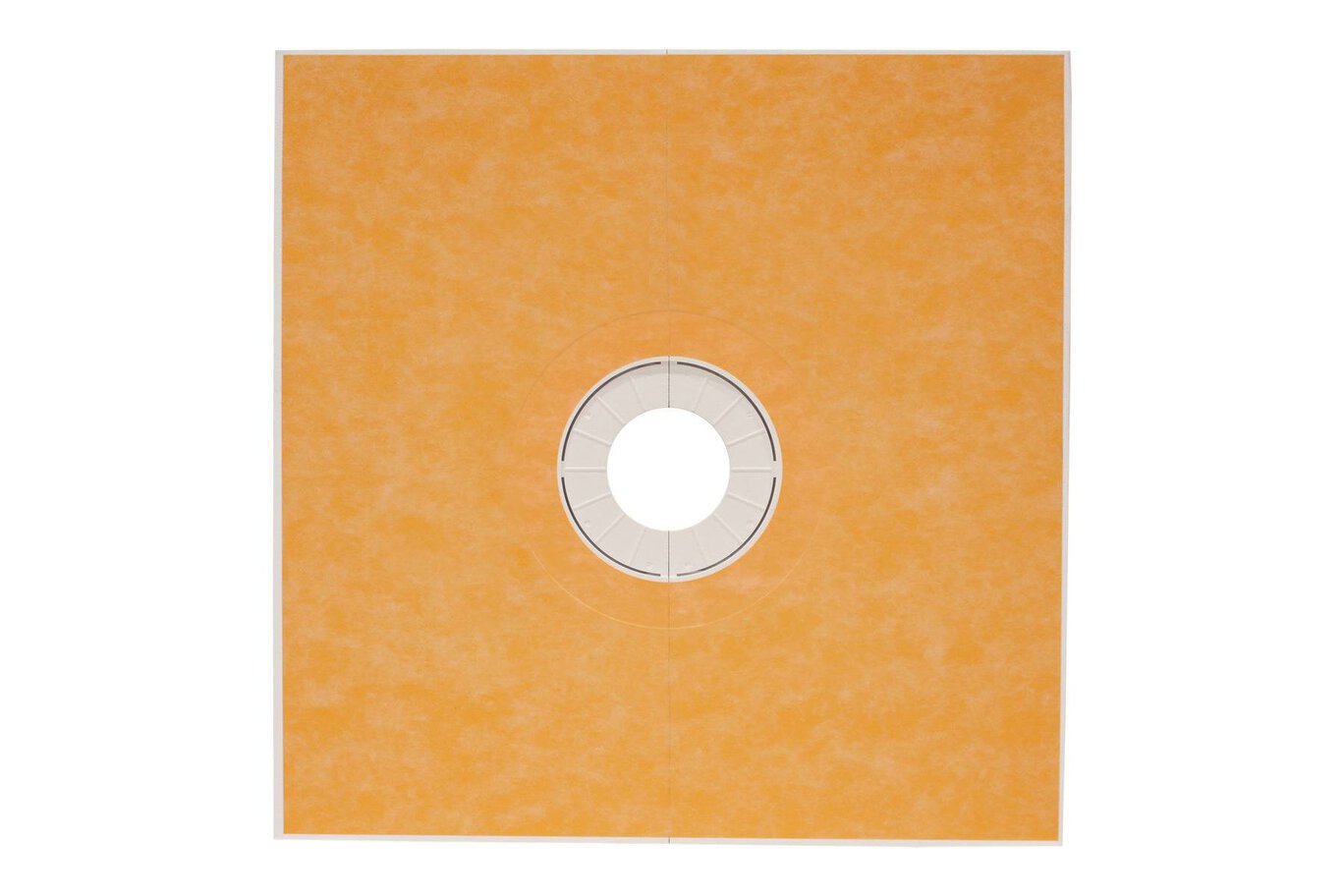

The trays are made of lightweight, expanded polystyrene (PS40) for constructing mortar-free shower bases. Each of these sloped, prefabricated shower trays are designed to integrate with the Schluter®-KERDI-DRAIN. The KERDI-SHOWER-T is the standard tray and are available with center drain placement is available in 38" x 60" (97 x 152 cm), 48" x 60" (122 x 152 cm), 48" x 72" (122 x 183 cm), 60" x 60" (152 x 152 cm) and 72" x 72" (183 x 183 cm) sizes. The KERDI-SHOWER-TS with an off-center drain placement is available in 38" x 60" (97 x 152 cm), for bathtub replacements. KERDI-SHOWER-TT features a thin perimeter height that simplifies curbless shower construction and is available in 36” x 36” (91 x 91 cm), 32" x 38" (81 x 97 cm), 38” x 38” (97 x 97 cm), 36" x 48" (91 x 122 cm) and 48” x 48” (122 x 122 cm) sizes. The KERDI-SHOWER-TT is also available in a neo angle configuration in 38” x 38” (97 x 97 cm). The neo-angle tray features an off-center drain placement: 12” (30.5 cm) from the 38” sides of the tray.
The substrate must be clean, even, and load bearing. Any leveling must be done prior to shower tray installation. If necessary, cut the tray to size prior to application; ideally, the tray is cut equally on all sides to ensure a consistent perimeter height. The base can also be extended beyond the tray using dry-pack mortar.
For complete installation guidelines and warranty criteria for shower applications, please download the Schluter®-Shower System Installation Handbook and view the installation videos available below.
My shower isn’t the same size as the Schluter®-KERDI-SHOWER-T/-TS/-TT trays. Can I modify the tray to fit my shower?
Yes. The KERDI-SHOWER- T/-TS/-TT trays can be cut to size to fit various applications. Ideally...Read more
Do I install the Schluter®-KERDI-BOARD-SC shower curb or Schluter®-KERDI-BOARD-SB shower bench on top of or adjacent to the Schluter®-KERDI-SHOWER- T/-TS/-TT shower trays?
The KERDI-BOARD-SC shower curbs and KERDI-BOARD-SB shower bench are typically installed adjacent to the Schluter prefabricated shower tray...Read more
How thick are the Schluter-KERDI-SHOWER shower trays?

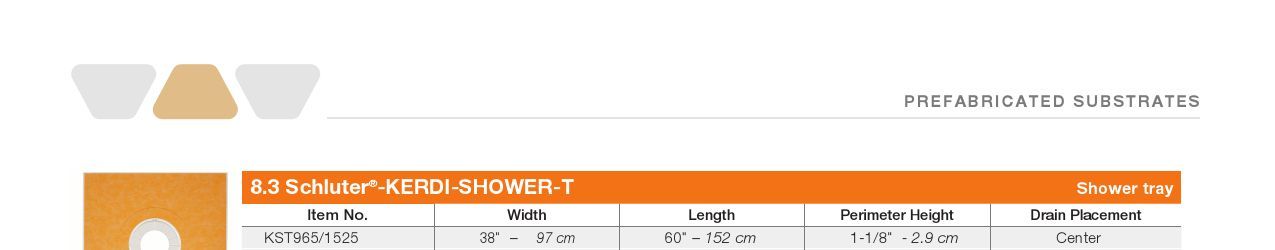

Below are the charts with the dimensions and perimeter height of each of the KERDI-SHOWER-T/-TS/-TT,...Read more
What is the largest size hole I can cut in the subfloor for the drain?
The maximum would have a 5” diameter. A template is included in the drain kit box to guide the application.
Do the new Schluter-KERDI-SHOWER–T/-TS/-TT shower trays with integrated KERDI membrane require additional waterproofing after installation?
Yes, all wall to tray connections must be waterproofed with KERDI-BAND. All KERDI drains need to be sealed...Read more
What size spacers should I use, if I need to install the drain before the KERDI-SHOWER-T/-TS/-TT tray?
There are two sizes of spacers included. Please refer to the diagram below to find your tray size.
How to install Schluter®-KERDI-SHOWER Trays
Tips & Tricks: How to Cut and Extend Trays, Curbs & Benches
How to Recess a Floor for a Curbless Shower with the Schluter®-Shower System
