DITRA-HEAT Estimator

Print

DITRA-HEAT Estimator

Notes & Images

Disable these images for printing

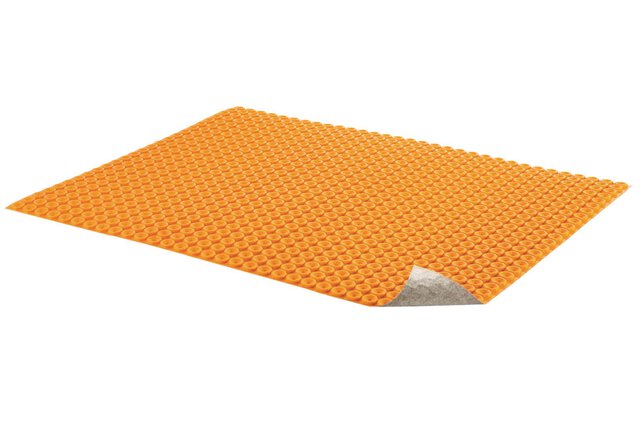

DITRA-HEAT-DUO SHEET 3'2-5/8" X 2'7-3/8" = 8.4 SF
DITRA-HEAT-DUO SHEET 3'2-5/8" X 2'7-3/8" = 8.4 SF $ 3761MSRP

Product Code:

DHD8MA

Product type:

membrane

Thickness:

8 mm (5/16")

Membrane area:

0.78 m² (8.4 ft²)

2 x
DITRA-HEAT CABLE 120V 35.3 FT
DITRA-HEAT CABLE 120V 35.3 FT $ 22864MSRP

Product Code:

DHEHK12011

Product type:

cable

Voltage:

120.0

Cable area:

1 m² (10.73 ft²)

1 x
DITRA-HEAT-E-RT TOUCH PROGRAM THERMOSTAT WHITE
DITRA-HEAT-E-RT TOUCH PROGRAM THERMOSTAT WHITE $ 28108MSRP

Product Code:

DHERT102/BW

Product type:

thermostat

1 x

Disclaimer

Your election to use this calculator is of your own choosing and is available without charge or expense to you. The information provided " AS IS" without any warranties, expressed or implied, from Schluter Systems L.P., SchluterSystems (Canada) Inc., or any of its affiliates (collectively, “ Schluter Systems” ), and confers no rights. In no event shall Schluter Systems be liable for any direct, indirect, special, incidental, or consequential damages of any kind arising from any error in this information or otherwise, including without limitation any loss or interruption of business, profits, use, service, or data. Schluter Systems is not responsible for any miscalculation or data entry error

Schluter Systems is not responsible or liable under any circumstances for determining the suitability of any products for your intended purpose. It is your responsibility to consult with an experienced and professional installer to ensure the suitability of all products, subfloor/substrate and all building materials in the installation and that the all installation instructions are followed properly.

Installation guidelines

Key points before placing installation

  • Never power a 120 Volt heating cable with a 240 Volt or 208 Volt power source.
  • Consult a qualified electrician or qualified person before ordering DITRA-HEAT heating cables to ensure you order the correct voltage for your installation.
  • Very important: Never CUT or modify the heating cable in any way. This would change the cable resistance, will cause damage to the cable, and could cause cable overheating.
  • Do not purchase a heating cable that is the same size as the area to be tiled ; you will be left with too much heating cable!
  • Previously unused cut sections of DITRA-HEAT membrane may be installed in other areas to minimize waste.
  • In the USA, approval from the local Authority Having Jurisdiction (AHJ) is required prior to installation on a shower floor and/or bench.
  • For installation and warranty requirements, refer to the Schluter®-DITRA-HEAT Installation Handbook
  • Contact Schluter Systems directly if you have and additional questions or concerns: 1-800-472-4588 (USA) and 1-800-667-8746 (Canada)
