Schluter®-RENO-V

Edge-protection profile with moveable transition arm

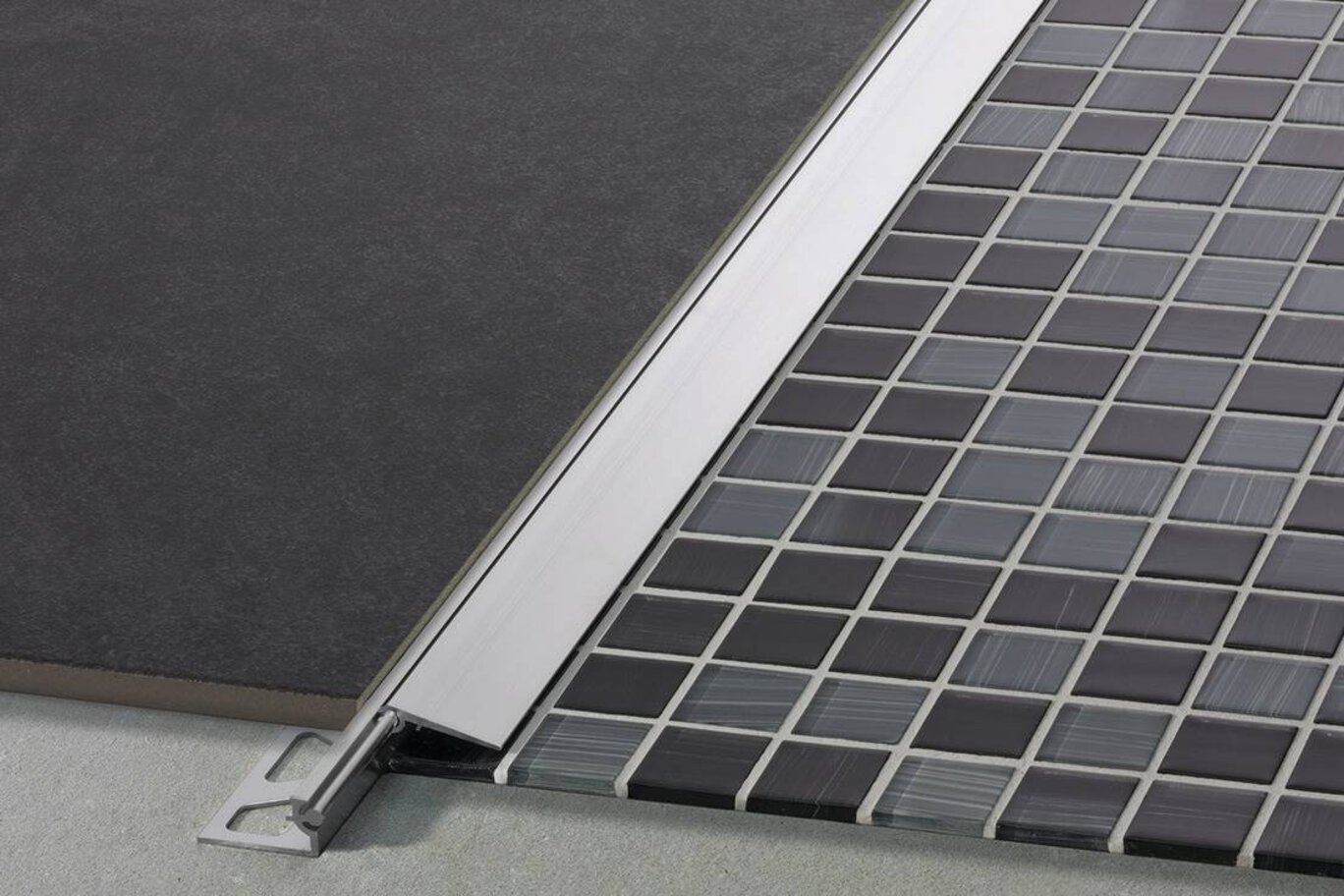

Schluter®-RENO-V is designed to protect tile edges and provide a smooth transition between tile coverings and floor coverings at lower elevations.
  • Prevents tile edges from chipping
  • Designed with a moveable transition arm that is adjustable to reach the height of adjacent floor coverings
  • Creates smooth transitions to eliminate trip hazards
  • Features an integrated joint spacer that creates a defined joint cavity between the tile and profile
  • Available in satin anodized aluminum
 ...read more  ...show less

Product type

Select all options to find the
specific product you want to buy.

Find recommended accessories here

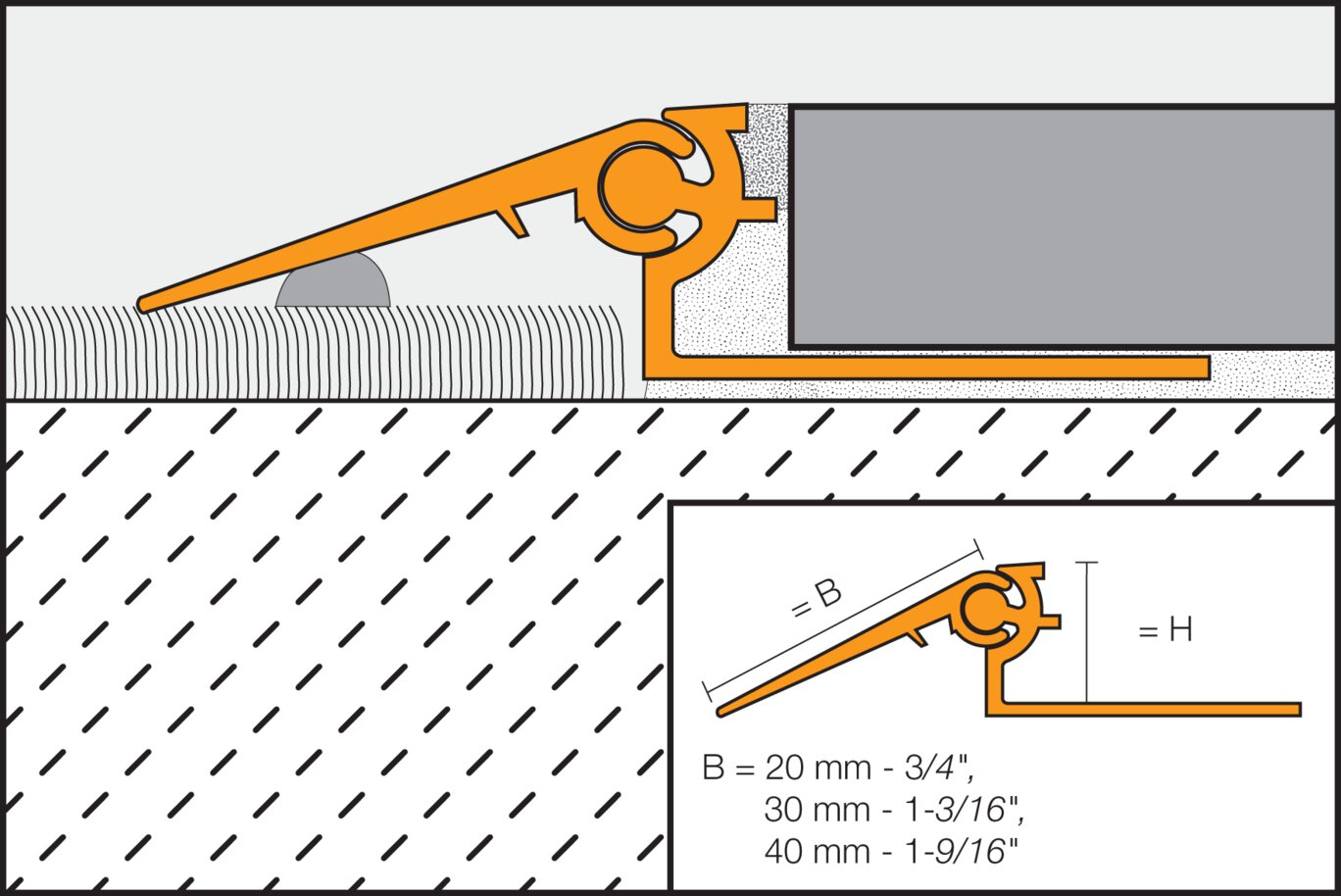

Schluter®-RENO-V is designed to provide a smooth transition between tile coverings and floor coverings at lower elevations. The profile is available in anodized aluminum. RENO-V features a trapezoid-perforated anchoring leg, which is secured in the mortar bond coat beneath the tile, and a movable transition arm that allows the profile to adjust to the height of the adjacent floor covering via a ball and socket joint. The profile protects tile edges and provides a sloped surface to eliminate trip hazards. RENO-V features an integrated joint spacer that establishes a defined joint cavity between the tile and the profile. RENO-V is also suitable for heavy-duty applications (e.g., entrances to garages or loading docks). In such cases, the adjustable arm is backfilled with mortar.

The Schluter-RENO-V profile requires no special maintenance or care and is resistant to mold and fungi. Clean profiles periodically using neutral cleaning agents.Oxidation films on aluminum may be removed with a common polishing agent but will form again.In the case of anodized aluminum, do not use abrasive cleaning agents.

1. Select the profile according to tile thickness and format.

1b) When RENO-V is used in heavy-duty applications; fill the cavity beneath the sloped section of the profile with thin-set mortar.

2. Using a notched trowel, apply thin-set mortar to the area where the profile is to be placed.

3. Press the perforated anchoring leg of the profile into the mortar and align.

4. Trowel additional thin-set mortar over the perforated anchoring leg to ensure full coverage and support of the tile edges.

5. Solidly embed the tiles so that the tiled surface is flush with the top of the profile; the profile should not be higher than the tiled surface, but rather up to approx. 1/32" (1 mm) lower.

6. Set the tile to the integrated joint spacer, which ensures a uniform joint of 1/16" - 1/8" (1.5 - 3 mm). With the stainless steel profiles, leave a space of approximately 1/16" - 1/8" (1.5 - 3 mm).

7. Fill the joint completely with grout or setting material.

8. Remove grout or mortar residue from the visible surface of the profile.

Articles

tileletter-tiling-entryways-foyers-kerdi
4.35 MB
Pdf

Warranties

Floor-Profiles-Warranty
59.23 KB
Pdf

Product Table

10870-preview
16.72 KB
Profiles_Floors
778.1 KB
Pdf

Brochures and Pamphlets

Profile Finishes and Colors
2.45 MB
Pdf

Data sheets

Floor Profiles Data Sheet
1.12 MB
Pdf

Spec. Guides

Product Spec Guide 2019
1.25 MB
Pdf

CAD drawings

schlueter_cad_reno_v_metr
43.64 KB
DWG
schlueter_cad_reno_v_metr
6.21 KB
Pdf
schlueter_cad_reno_v_inst
35.98 KB
DWG
schlueter_cad_reno_v_imp
6.41 KB
Pdf
schlueter_cad_reno_v_inst
12.54 KB
Pdf
schlueter_cad_reno_v_imp
36.25 KB
DWG

Specify our products using the

Specification Logo
Player

Watch & Learn
About the product

How to install a tile transition on floors: Schluter®-RENO-V

How to install a tile transition on floors: Schluter®-RENO-V

04:32
Introduction to Schluter® Profiles

Introduction to Schluter® Profiles

03:35
How to choose the appropriate profile size in relation to your tile

How to choose the appropriate profile size in relation to your tile

03:10
How to Flatten your Substrate for Schluter® Profiles

How to Flatten your Substrate for Schluter® Profiles

02:20

Find some existing tutorials and project documentation videos to learn how-to get the best out of our products - for more fun in your life, start now!

Watch more videos / playlists

For Floors / Sloped Transitions

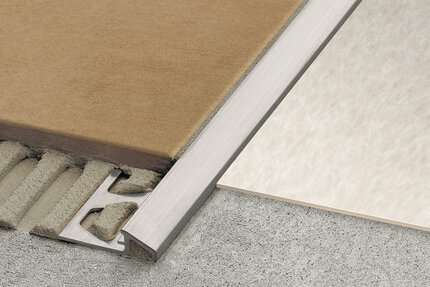

Schluter®-RENO-U

For Floors / Sloped Transitions

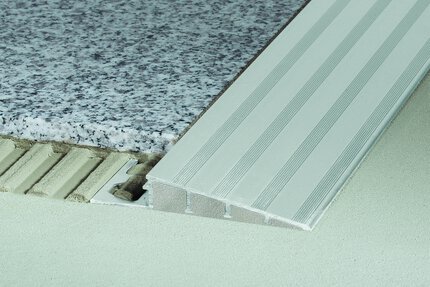

Schluter®-RENO-RAMP/-K

For Floors / Sloped Transitions

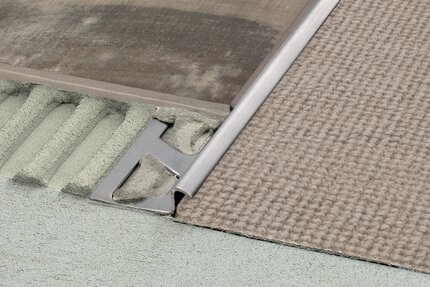

Schluter®-RENO-TK
