Adaptadores de desagüe y panel
de compensación Schluter®-Systems
Schluter®-Systems drain adaptors provide a cost-effective solution for upgrading drainage systems in both residential and commercial applications. KERDI-DRAIN-A and KERDI-LINE-A adaptor kits offer a seamless retrofit solution by converting a large variety of existing clamping ring drains into integrated bonding flange systems that work flawlessly with Schluter waterproofing membranes.
Designed for both mortar bed installations and Schluter’s prefabricated shower tray systems, these adaptors enable installers to integrate KERDI-DRAIN and KERDI-LINE drains with existing two-stage drains—eliminating the need for costly and time-consuming demolition—while preserving structural integrity and fire ratings.
Retrofit Efficiency:
Converts pre-installed clamping ring drains without removal, saving time and labor costs.
Watertight Seal:
Employs a steel adaptor ring with an over-molded rubber gasket and KERDI-FIX adhesive to deliver a reliable, leak-proof installation.
Versatile Applications:
Available for both traditional shower drains (KERDI-DRAIN-A) and linear drain (KERDI-LINE-A), and is suitable for mortar beds and prefabricated shower trays.
Industry Certified:
Engineered to meet rigorous standards (ASME A112.18.2/CSA B125.2-2020), ensuring quality performance.
User-Friendly Installation:
Features adjustable bolt patterns for a straightforward, secure installation.
Compensation Board:
Accommodates the height of the adaptor ring for proper alignment and flush installation.
KERDI-DRAIN-A
Adaptor Kit for KERDI-DRAIN Point Drains
The KERDI-DRAIN-A adaptor kit is engineered to convert traditional clamping ring drains into integrated bonding flange drains when removal isn’t practical, such as when the existing drain is embedded in concrete. Designed for existing two-stage drain installations, the adaptor ring is available in two sizes—5 1/2" (140 mm) and 7 1/2" (191 mm) diameters—and features versatile perforated hole patterns that align with most common clamping ring configurations. By replacing the original clamping ring with a steel adaptor ring with over-molded rubber gasket, the bonding flange slides seamlessly into place to create a robust, watertight connection.
System Components
1. Drain Body with Integrated Bonding Flange
Forms the essential interface between the drain and the bonded waterproofing membrane at the top of the assembly.
2. Adaptor Ring
Replaces the existing clamping ring, featuring versatile perforated patterns to align with most two-stage drain configurations.
3. Tube of KERDI-FIX – 3.38 fl oz (100 ml)
Applied as a continuous bead to create a secure, moisture-proof bond between the adaptor ring and the installed drain.
KERDI-DRAIN Grate Options
KERDI-LINE-A
Adaptor Kit for KERDI-LINE Linear Drains
KERDI-LINE-A is an adaptor kit engineered to convert a traditional clamping ring drain into a KERDI-LINE linear drain. Like KERDI-DRAIN-A, it offers an ideal solution for converting existing drains that are difficult to remove. The steel adaptor ring, featuring an over-molded rubber gasket and multiple perforated hole patterns, replaces the original clamping ring and is secured to the drain body using the existing bolts. The KERDI-LINE channel body outlet slides into the adaptor ring with a tight fit against the rubber gasket, ensuring a reliable watertight seal for the linear drainage system.
System Components

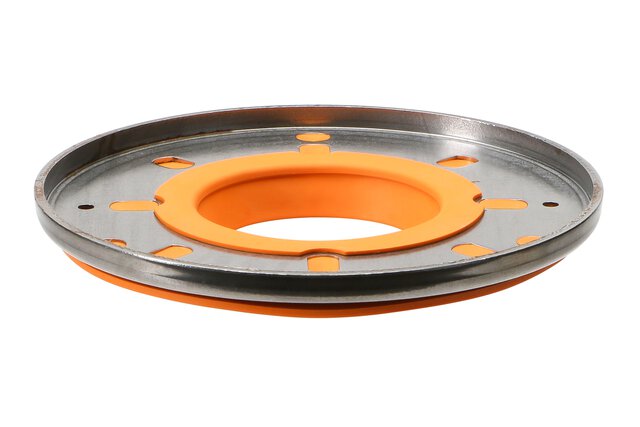

1. KERDI-LINE Adaptor Ring
A precision-engineered steel ring with an over-molded rubber gasket that replaces the existing clamping ring, featuring perforated hole patterns compatible with most two-stage drain configurations.
2. Tube of KERDI-FIX – 3.38 fl oz (100 ml)
Provides a reliable bond between the adaptor ring and the installed drain, ensuring a leak-proof seal.
Use with KERDI-LINE Linear Drain
Channel Body with Center Outlet
Channel Body with Off-Set Outlet
KERDI-LINE Grate Options
Panel de compensación
KERDI-SHOWER-CB
El panel de compensación KERDI-SHOWER-CB, de 1" (2.5 cm) de grosor, es un componente fundamental cuando se utilizan los kits adaptadores de desagüe de Schluter con los paneles de ducha prefabricados KERDI-SHOWER. Se adapta a la altura del anillo adaptador, lo que garantiza una alineación adecuada y una instalación a ras que se integra perfectamente con el sistema del panel de ducha. El panel de compensación puede cortarse fácilmente a la medida para adaptarse al anillo adaptador, y pueden utilizarse varios paneles para adaptarse al tamaño y la forma de la ducha.
Aplicaciones comerciales
En proyectos comerciales, el tiempo es dinero, y los kits adaptadores de desagüe de Schluter®-Systems permiten ahorrar significativamente en ambos aspectos. Estos kits, al convertir los desagües de anillo de sujeción existentes en pisos de concreto postensado en sistemas de platillo de conexión integrado, eliminan la necesidad de una demolición costosa y lenta. Esta eficiencia hace que los kits de adaptadores sean una solución ideal para renovaciones comerciales en las que es crucial minimizar el tiempo de inactividad y los gastos.
Schluter®-
KERDI-DRAIN-A
Los kits adaptadores convierten los desagües de anillo de sujeción en desagües de platillo de conexión integrado
Schluter®-
KERDI-LINE-A
Los kits adaptadores convierten los desagües de anillo de sujeción en desagües de platillo de conexión integrado para desagües lineales
